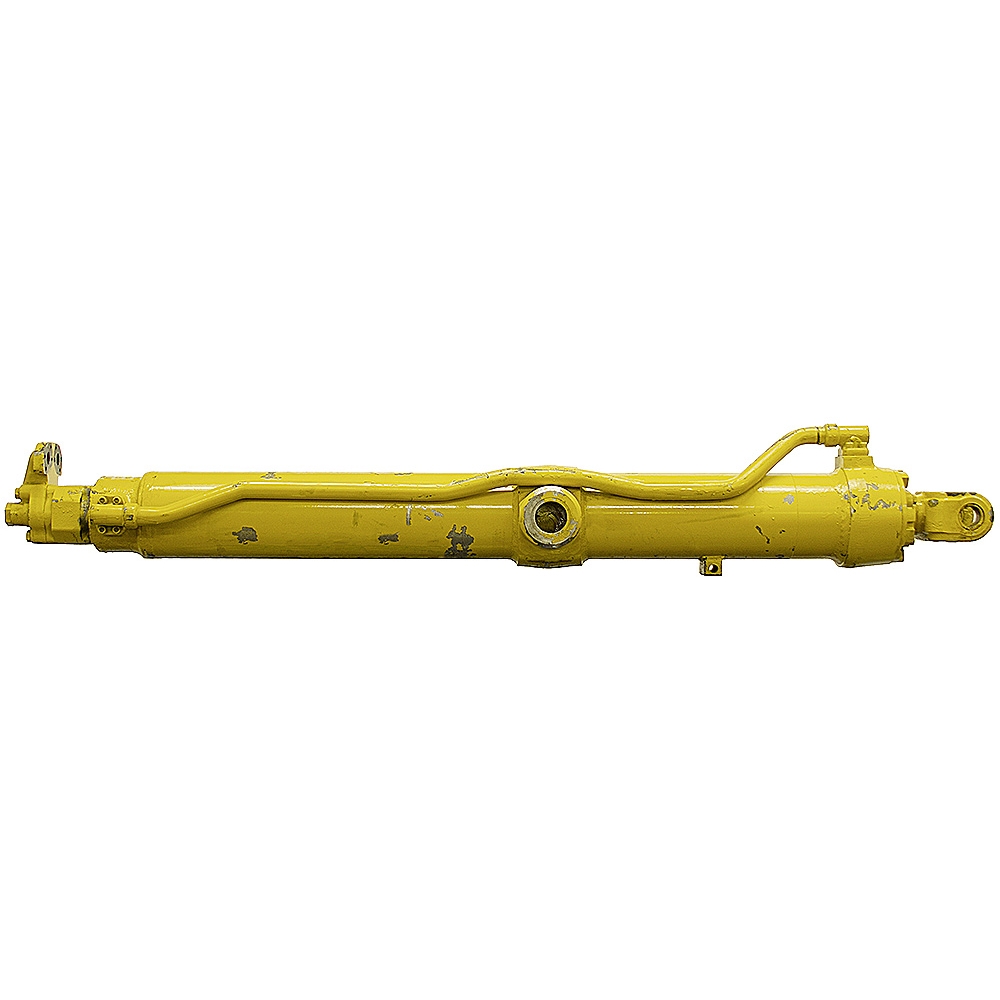

6.5x54x3 Trunnion Double-Acting Hydraulic Cylinder Fiat-Allis 73129651 LH | No Brand Name | Brands | www.surpluscenter.com

FIAT-ALLIS . MODEL# 73129651

Gallery

Attributes

Brand name, Manufacturer name, ManufacturerFIAT-ALLIS
DimensionUnitinch
Extra Product Name6.5x54x3 Trunnion Double-Acting Hydraulic Cylinder Fiat-Allis 73129651 LH | No Brand Name | Brands | www.surpluscenter.com
Weight540
WeightUnitlbs
height4.125
height_AttribThroat Depth
length34.875
length_AttribRetracted Length
moq, multiple, tierMinQty11
MPNMODEL# 73129651
qtyInStock13
SKU9-9588
snippet6.5x54x3 Trunnion Double-Acting Hydraulic Cylinder Fiat-Allis 73129651 LH, No Brand Name, 6.5 x 54 x 3 DA LEFT-HAND HYDRAULIC CYLINDER
tierPrice1599.95
width11.125
width_AttribPin Outside Width
Bore x Stroke6-1/2" x 54"
Barrel Thickness3/8"
Pressure3000 PSI max.
Rod Dia3"
Ports1" Four Bolt Flange, Code 61
Retracted Length, Pin Center to Rod Pin Center34-7/8"
Shpg540 lbs.
Rod EndClevis
Outside Width7"
Inside Width4"
Throat Depth4-1/8"
Pin Hole1-3/4"
TrunnionFemale
Pin Outside Width11-1/8"
Pin Inside Width7-3/16"
Pin Center to Base End44-1/2"
Pin Diameter2-1/2"

Distributor offers

SellerSKUMOQIn stockMultiplePrices
surpluscenter.com9-958811311 @ $599.95
