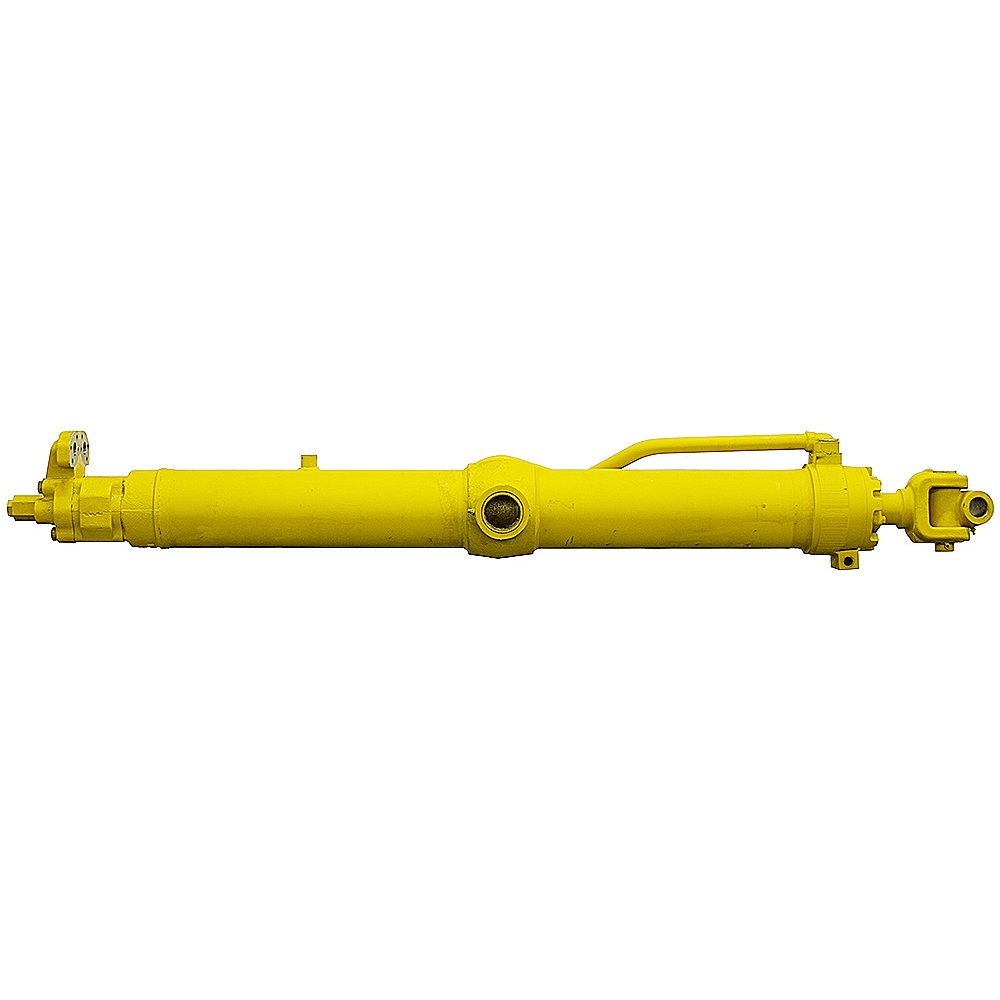

5.5x46.5x2.5 Double-Acting Hydraulic Cylinder Fiat-Allis 73118802 | Double Acting Hydraulic Cylinders | Hydraulic Cylinders | Hydraulics | www.surpluscenter.com

FIAT-ALLIS . MODEL# 73118802

Gallery

Attributes

Brand name, Manufacturer name, ManufacturerFIAT-ALLIS
DimensionUnitinch
Extra Product Name5.5x46.5x2.5 Double-Acting Hydraulic Cylinder Fiat-Allis 73118802 | Double Acting Hydraulic Cylinders | Hydraulic Cylinders | Hydraulics | www.surpluscenter.com
Weight375
WeightUnitlbs
height3.5
height_AttribThroat Depth
length34.25
length_AttribRetracted Length
moq, multiple, tierMinQty11
MPNMODEL# 73118802
qtyInStock11
SKU9-10171
snippet5.5x46.5x2.5 Double-Acting Hydraulic Cylinder Fiat-Allis 73118802, Double Acting Hydraulic Cylinders, 5.5 x 46.5 x 2.5 DA TRUNNION HYDRAULICFIAT-ALLIS,MODEL# 73118802,
tierPrice1569.95
width4.0
width_AttribWidth
Bore x Stroke5-1/2" x 46-1/2"
Barrel Thickness1/4"
Pressure3000 PSI max.
Rod Dia, Pin Diameter2-1/2"
Ports1" Four Bolt Flange, Code 61
Retracted Length, Pin Center to Rod Pin Center34-1/4"
Shpg375 lbs.
Rod EndClevis
Outside Width5-1/4"
Inside Width3-1/16"
Throat Depth3-1/2"
Pin Hole1-1/2"
Width4"
O D2-5/16"
TrunnionFemale
Pin Outside Width10-1/4"
Pin Inside Width6"
Pin Center to Base End38"

Distributor offers

SellerSKUMOQIn stockMultiplePrices
surpluscenter.com9-1017111111 @ $569.95
