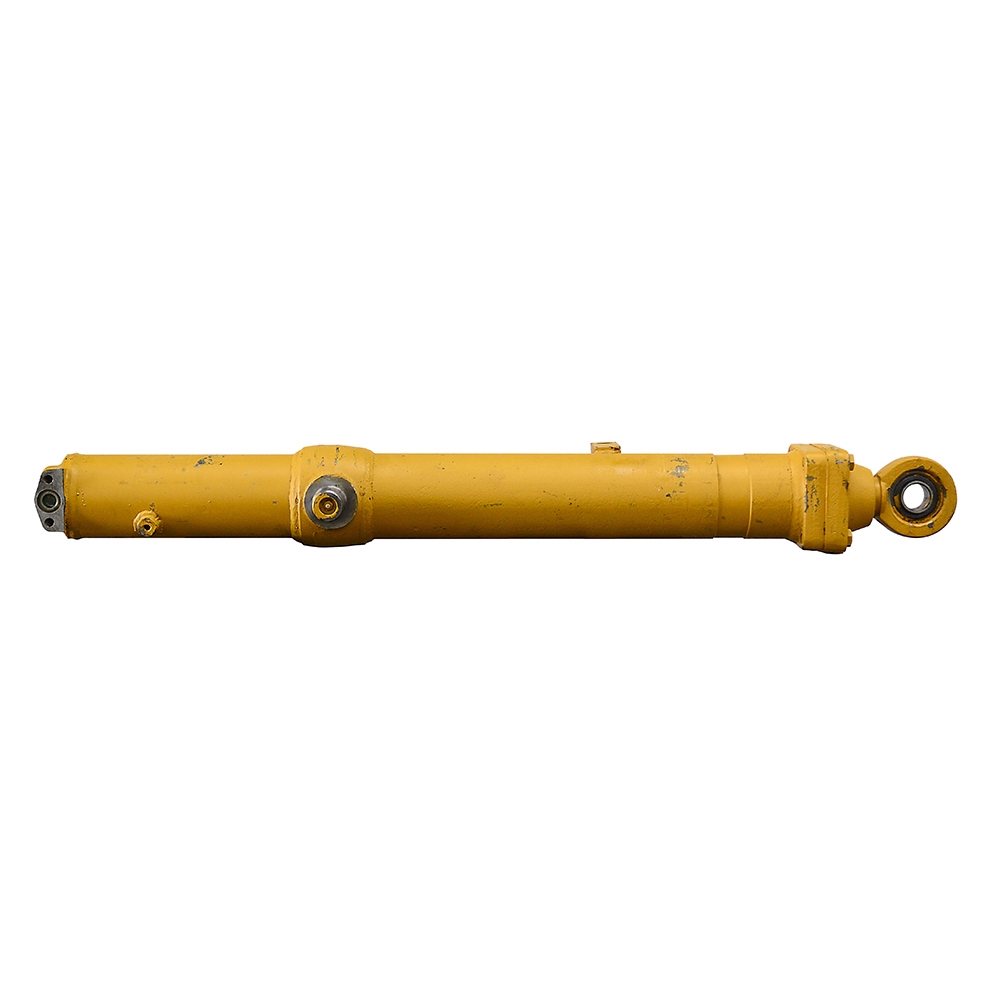

3.53(90mm)x35(890mm)x1.97(50mm) Double-Acting Hydraulic Cylinder Fiat-Allis 8293995 | Double Acting Hydraulic Cylinders | Hydraulic Cylinders | Hydraulics | www.surpluscenter.com

Fiat-Allis . 8293995

Gallery

Attributes

Brand name, Manufacturer name, ManufacturerFiat-Allis
DimensionUnitinch
Extra Product Name3.53(90mm)x35(890mm)x1.97(50mm) Double-Acting Hydraulic Cylinder Fiat-Allis 8293995 | Double Acting Hydraulic Cylinders | Hydraulic Cylinders | Hydraulics | www.surpluscenter.com
Weight143
WeightUnitlbs
diameter, height1.97
height_AttribRod Dia.
length30.5
length_AttribRetracted Length
moq, multiple, qtyInStock, tierMinQty11
MPN8293995
SKU9-12992
snippet3.53(90mm)x35(890mm)x1.97(50mm) Double-Acting Hydraulic Cylinder Fiat-Allis 8293995, Double Acting Hydraulic Cylinders, 3.53 (90mm) x 35 (890mm) xFiat-Allis,8293995,
tierPrice1239.95
width1.59
width_AttribWidth
Bore x Stroke3.53"(90mm) x 35"(390mm)
Barrel Thickness0.491"
Gland RetainerBolt on
Pressure3000 PSI
Rod Dia1.97"(50mm)
PortsTwo bolt flange M12-1.75 tapped bolt holes on 2.207" centers w/ 0.789" port hole and 1.205" dia. recess
Retracted Length30.5" (trunnion)
Gland Face to Rod Pin Center2.375"
Shpg143 lbs.
Rod EndSwivel Eye
Width1.59"
Pin-Center-To-Swivel Eye-End2.17"
Swivel Eye Width1.53"
Pin Hole1.38"(35mm)
Base EndMale Trunnion
Pin Outside/Inside Width8.625" / 5.5"
Pin-Center-To-Rod Pin Center30.5"
Pin Center To Base End15"
Pin Dia1.58"(40mm)

Distributor offers

SellerSKUMOQIn stockMultiplePrices
surpluscenter.com9-129921111 @ $239.95
