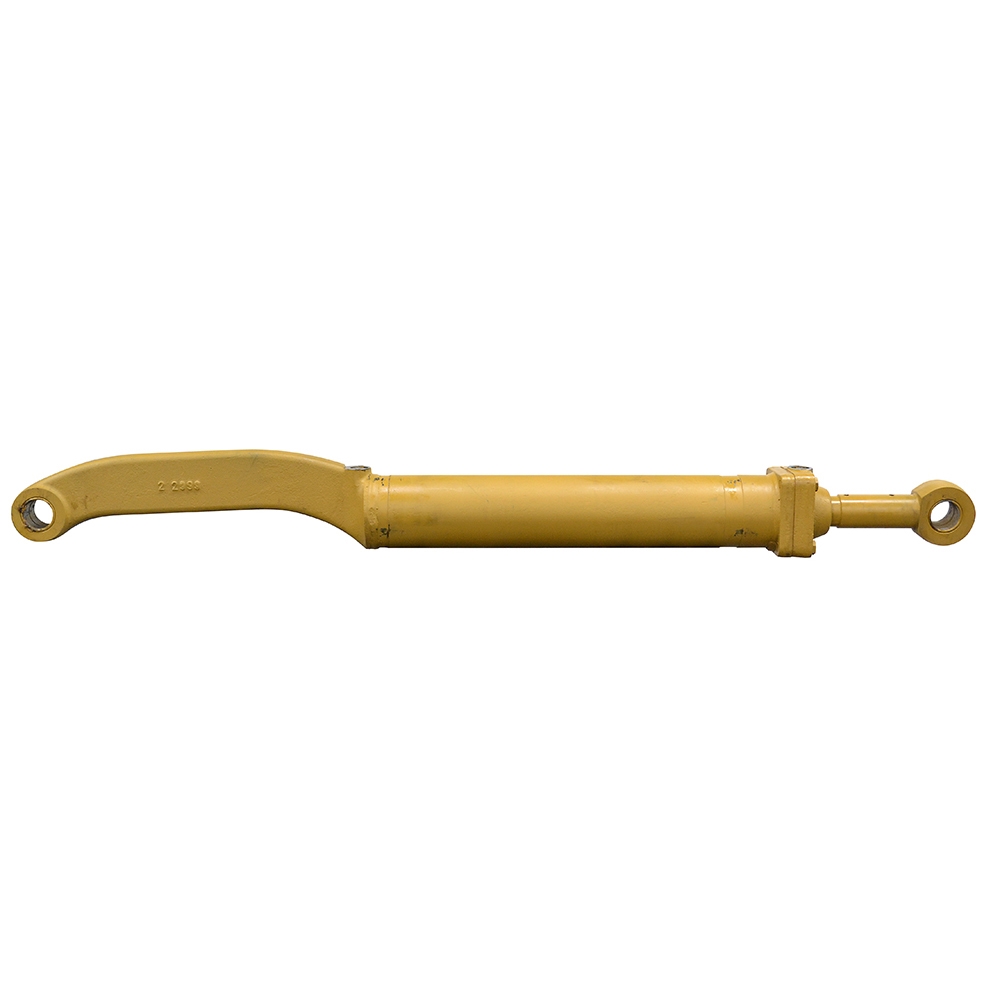

5.12(130mm) x 29.72(755mm) x 2.56(65mm) Double-Acting Hydraulic Cylinder Fiat-Allis 08296443 | Double Acting Hydraulic Cylinders | Hydraulic Cylinders | Hydraulics | www.surpluscenter.com

FIAT-ALLIS . 08296443

Gallery

Attributes

Brand name, Manufacturer name, ManufacturerFIAT-ALLIS
DimensionUnitinch
Extra Product Name5.12(130mm) x 29.72(755mm) x 2.56(65mm) Double-Acting Hydraulic Cylinder Fiat-Allis 08296443 | Double Acting Hydraulic Cylinders | Hydraulic Cylinders | Hydraulics | www.surpluscenter.com
Weight323
WeightUnitlbs
diameter, height, length2.56
height_Attrib, length_AttribRod Dia.
moq, multiple, tierMinQty11
MPN08296443
qtyInStock3
SKU9-11574
snippet5.12(130mm) x 29.72(755mm) x 2.56(65mm) Double-Acting Hydraulic Cylinder Fiat-Allis 08296443, Double Acting Hydraulic Cylinders, 5.12 (130mm) x 29.72FIAT-ALLIS,08296443,
tierPrice1349.95
width3.07
width_AttribWidth
Bore x Stroke5.12"(130mm) x 29.72"(755mm)
Barrel Thickness0.443"
Gland RetainerBolt on
Pressure3000 PSI
Rod Dia2.56"(65mm)
PortsTwo, M12-1.75 x 25mm tapped bolt holes on 2.56"(65mm) centers w/ 0.868"(22mm) port hole
Retracted Length73.625
Gland Face to Rod Pin Center9.5"
Shpg323 lbs.
Rod End, Base EndTang
Width3.07"
Pin-Center-To-Tang-End2.57"
Pin Hole2.36"(60mm)

Distributor offers

SellerSKUMOQIn stockMultiplePrices
surpluscenter.com9-115741311 @ $349.95
