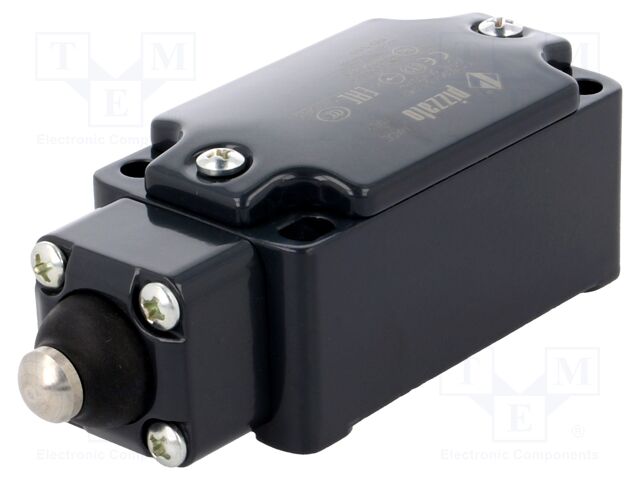

PIZZATO ELETTRICA FD 510 | Limit switch; rubber seal,pin plunger ?10mm; NO + NC; 10A; IP67

PIZZATO ELETTRICA . FD 510

Gallery

Attributes

Brand name, Manufacturer name, ManufacturerPIZZATO ELETTRICA
CategoryL1Automation
CategoryL2Regulation and Control
CategoryL3Limit Switches
Extra Product NamePIZZATO ELETTRICA FD 510 | Limit switch; rubber seal,pin plunger ?10mm; NO + NC; 10A; IP67
atoms, moq, multiple, tierMinQty11
jsonUrlData85cd43e6c68caa83b6dff7979ba68a49.
jsonUrlData2eac840a74c36162c3db4
keywordsPIZZATO ELETTRICA, FD 510, FD510
MPNFD 510
qtyInStock31
SKUFD510
snippetPIZZATO ELETTRICA FD 510 | Limit switch; rubber seal,pin plunger ?10mm; NO + NC; 10A; IP6
tierMinQty25
tierMinQty310
tierPrice116.34
tierPrice215.25
tierPrice314.16
Type of sensorlimit switch
Kind of actuatorpin plunger ?10mm,
Output configurationNO + NC
Contact current max10A
Switched voltagemax. 250V DC,
ConnectionPG13,5
IP ratingIP67
Body dimensions60x40x30mm
Number of mounting holes4
Operating temperature-25...80?C
Body materialmetal
AC contacts rating @R6A / 250V AC
DC contacts rating @R6A / 24V DC
Mechanical durability20000000 cycles
Mounting holes pitch30/60mm
Switches featuressnap action contacts

Distributor offers

SellerSKUMOQIn stockMultiplePrices
TMEFD51013111 @ $16.34, 5 @ $15.25, 10 @ $14.16
kempstoncontrols.co.ukFD 510111 @ $26.86
