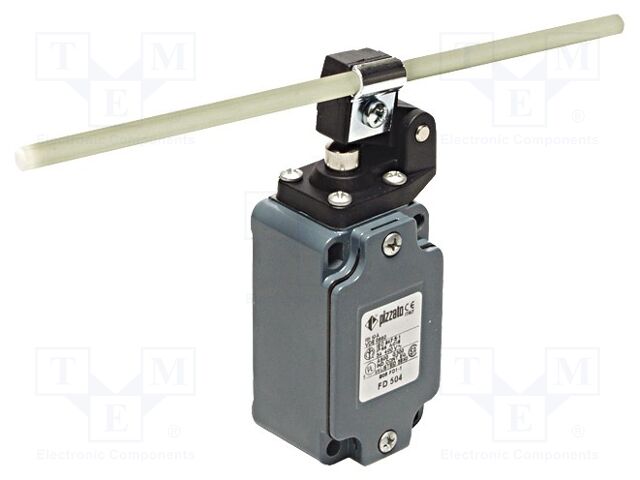

PIZZATO ELETTRICA FD 504 | Limit switch; adjustable fiber glass rod, max length 187mm

PIZZATO ELETTRICA . FD 504

Gallery

Attributes

Brand name, Manufacturer name, ManufacturerPIZZATO ELETTRICA
CategoryL1Automation
CategoryL2Regulation and Control
CategoryL3Limit Switches
Extra Product NamePIZZATO ELETTRICA FD 504 | Limit switch; adjustable fiber glass rod, max length 187mm
atoms, moq, multiple, tierMinQty11
jsonUrlData251255220e605262535965fd28971cc5.
jsonUrlData2a4334fa04b8ba22f7a57
keywordsPIZZATO ELETTRICA, FD 504, FD504
MPNFD 504
qtyInStock0
SKUFD504
snippetPIZZATO ELETTRICA FD 504 | Limit switch; adjustable fiber glass rod, max length 187m
tierMinQty25
tierMinQty310
tierPrice115.99
tierPrice214.92
tierPrice313.86
Type of sensorlimit switch
Kind of actuatoradjustable fiber glass rod, max length 187mm
Output configurationNO + NC
Contact current max10A
Switched voltagemax. 250V DC,
ConnectionPG13,5
IP ratingIP67
Body dimensions60x40x30mm
Number of mounting holes4
Operating temperature-25...80?C
Body materialmetal
AC contacts rating @R6A / 250V AC
DC contacts rating @R6A / 24V DC
Mechanical durability20000000 cycles
Mounting holes pitch30/60mm
Switches featuressnap action contacts

Distributor offers

SellerSKUMOQIn stockMultiplePrices
TMEFD504111 @ $15.99, 5 @ $14.92, 10 @ $13.86
kempstoncontrols.co.ukFD 504111 @ $29.19
