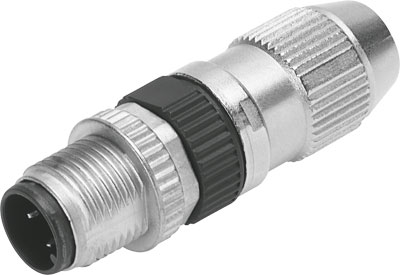

NECU-S-M12G3-HX – Coast Pneumatics

Festo . 562027

Attributes

Brand name, Manufacturer name, ManufacturerFesto
DimensionUnitmm
Extra Product NameNECU-S-M12G3-HX – Coast Pneumatics
Weight17.5
WeightUnitg
Weight_AttribProduct weight
diameter, length, width2.9
length_Attrib, width_AttribApproved cable diameter
moq, multiple, tierMinQty11
MPN, SKU562027
qtyInStock-2
qtySourceDefault field
tierPrice122.77
Type codeNECU
Based on normEN 61076-2-101EN 61984
Certificationc UL us – Recognized (OL)
Contact durability, Contamination level3
Product weight17.5 g
Electrical connection3-pinA-codedM12x1Straight plug/insulation displacement connector
DC operating voltage range, Operating voltage range AC0 V … 32 V
Current rating at 40??C0.166666666666667
Surge resistance0.8 kV
Approved cable diameter2.9 mm … 5.1 mm
Individual wire diameter??? 0.1 mm
Connection cross section0.14 mm?? … 0.34 mm??
Degree of protectionIP65IP67
Ambient temperature-25 ??C … 85 ??C
Note on materialsFree of copper and PTFERoHS-compliant
Corrosion resistance class (CRC)1 – Low corrosion stress
Housing materialNickel-platedPADie-cast zinc
Seals materialPURFPM
Material of pin contactsGold-plated
Permissible insulating sheathTPE-EPPPVC
Wire diameter0.9 mm … 1.6 mm

Distributor offers

SellerSKUMOQIn stockMultiplePrices
Coast Pneumatics5620271-211 @ $22.77
sun-source.com562027111 @ $0.00
