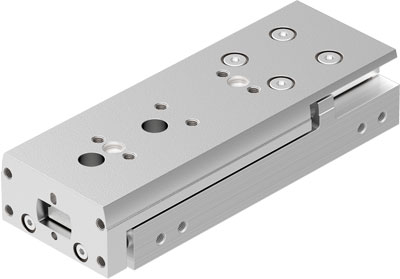

DGST-6-10-E1A – Coast Pneumatics

Festo . 8078828

Attributes

Brand name, Manufacturer name, ManufacturerFesto
DimensionUnitmm
Extra Product NameDGST-6-10-E1A – Coast Pneumatics
Weight90
WeightUnitg
Weight_AttribProduct weight
diameter, height, width6.0
height_Attrib, width_AttribPiston diameter
length0.9
length_AttribCushioning length
moq, multiple, tierMinQty11
MPN, SKU8078828
qtyInStock-2
qtySourceDefault field
tierPrice1277.34
Guide materialPOMHigh-alloy steelTPE-E
Stroke10 mm
Piston diameter6 mm
Type codeDGST
Drive unit operating modeYoke
CushioningElastomer cushioning, at both ends, stroke not adjustable
Mounting positionAny
GuideRecirculating ball bearing guide
DesignScotch yoke system
Position sensingFor proximity sensor
Symbol991249
Operating pressure1.5 bar … 8 bar
Max speed0.5 m/s
Mode of operationDouble-acting
Operating mediumCompressed air as per ISO 8573-1:2010 [7:4:4]
Information on operating and pilot mediaOperation with oil lubrication possible (required for further use)
Corrosion resistance class (CRC)1 – Low corrosion stress
Ambient temperature-10 ??C … 60 ??C
Impact energy in the end positions0.005 J
Cushioning length0.9 mm
Max force Fy, Max force Fz200 N
Max torque My, Max torque Mz0.7 Nm
Theoretical force at 6 bar, retracting25 N
Theoretical force at 6 bar, advancing34 N
Moving mass49 g
Product weight90 g
Type of mountingWith through-hole
Pneumatic connectionM3
Note on materialsFree of copper and PTFERoHS-compliant
Cover material, Housing materialWrought aluminum alloy
Seals materialHNBR
Piston rod materialHigh-alloy stainless steel
