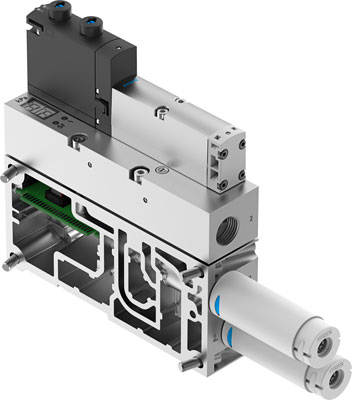

VABF-S4-2-V2B1-G38-CB-VH-20-AP – Coast Pneumatics

Festo . 8067143

Attributes

Brand name, Manufacturer name, ManufacturerFesto
DimensionUnitmm
Extra Product NameVABF-S4-2-V2B1-G38-CB-VH-20-AP – Coast Pneumatics
Weight940
WeightUnitg
Weight_AttribProduct weight
moq, multiple, tierMinQty11
MPN, SKU8067143
qtyInStock-2
qtySourceDefault field
tierPrice11639.99
width35.0
width_AttribWidth
Signal status display, Sensor switching status indicationLED
Material of adjusting screwHigh-alloy stainless steel
Material of jet nozzle, Housing materialWrought aluminum alloy
Protection classIII
Female nozzle materialPOM
Muffler materialPOMPU foam
Setting optionsTeach-inVia parameter sets
Display typeLEDLED display2-digit
Displayable unit(s)kPa
Vacuum connectionG3/8
Operating pressure for max suction rate, Operating pressure for max vacuum4 bar
Max suction rate with respect to atmosphere99 l/min
Air supply time at nominal operating pressure0.3 s
Reproducibility, switching value FS1 %
Noise level at nominal operating pressure73 dB(A)
Display range end value0.099 MPa
Max vacuum0.092 MPa
Display range start value0 MPa
Setting range threshold value0 MPa … 0.099 MPa
Setting range hysteresis0 MPa … 0.09 MPa
Width35 mm
Nominal width of Laval nozzle2 mm
Type codeVABF
Muffler construction typeOpen
Actuation typeElectrical
Reverse polarity protectionfor all electrical connections
Mounting positionAny
Ejector characteristicsHigh vacuumStandard
Manual overrideDetentingNon-detentingCovered
Integrated functionFlow controlShut off valve, electricAir saving function, electricalPower ejector pulse valve, electricNon-return valvePneumatic muffler openVacuum switch
Measured variableRelative pressure
Measuring principlePiezoresistive
Switching functionWindow comparatorThreshold value comparator
Symbol00995925
Valve function5/3, pressurized
Operating pressure4 bar … 8 bar
Nominal operating pressure6 bar
Pilot pressure4 bar … 10 bar
DC operating voltage range21.6 V … 30 V
Idle current30 mA
Duty cycle100%
Operating mediumCompressed air as per ISO 8573-1:2010 [7:4:4]
Information on operating and pilot mediaOperation with oil lubrication not possible
CE marking (see declaration of conformity)As per EU EMC directive
Corrosion resistance class (CRC)0 – No corrosion stress
Temperature of medium, Ambient temperature-5 ?C … 50 ?C
Degree of protectionIP65
CertificationRCM compliance mark
Product weight940 g
Pressure measuring range-1 bar … 0 bar
Accuracy in ? % FS3 %FS
Electrical actuationFieldbus
Electrical connectionVia CPX
Pneumatic connection 3Pneumatic muffler open
Note on materialsRoHS-compliant
Seals materialHNBRNBR
Plate materialDie-cast aluminum
Material of screwsSteel

Distributor offers

SellerSKUMOQIn stockMultiplePrices
Coast Pneumatics80671431-211 @ $1639.99
sun-source.com8067143111 @ $0.00
