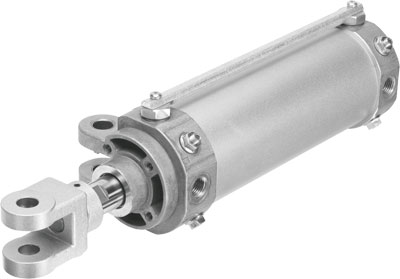

DWB-63-50-Y-A-G – Coast Pneumatics

Festo . 565756

Attributes

Brand name, Manufacturer name, BrandFesto
ManufacturerFesto FESTO
DimensionUnitmm
Extra Product NameDWB-63-50-Y-A-G – Coast Pneumatics
Weight1600 3.82942949094 3.8360433588
WeightUnitg
Weight_AttribBasic weight with 0 mm stroke
diameter, height, width63.0
height_Attrib, width_AttribPiston diameter
length20.0
length_AttribCushioning length
moq, multiple, tierMinQty1, Case, NumberOfItems, PackageQuantity1
MPN, SKU, Part Number, Model, PartNumber565756
qtyInStock-2
qtySourceDefault field
tierPrice1229.56
UPC, EAN, EANList, UPCList743270402272
Product Group, ProductGroupBISS
Stroke50 mm
Piston diameter63 mm
Piston rod threadM16x1.5
Wide rod clevis/swivel mounting19.5 mm
Type codeDW
CushioningPneumatic cushioning, adjustable at both ends
Mounting positionAny
DesignPistonPiston rod with rod clevisSwivel mounting on bearing capCylinder barrel
Velocity controlIntegrated flow control at both ends
Position sensingFor proximity sensor
Piston rod endExternal thread with rod clevis
Operating pressure1 bar … 10 bar
Mode of operationDouble-acting
Operating mediumCompressed air as per ISO 8573-1:2010 [7:4:4]
Information on operating and pilot mediaOperation with oil lubrication possible (required for further use)
Corrosion resistance class (CRC)0 – No corrosion stress
Ambient temperature-10 ?C … 60 ?C
Impact energy in the end positions1.3 J
Cushioning length20 mm
Theoretical force at 6 bar, retracting1682 N
Theoretical force at 6 bar, advancing1870 N
Moving mass at 0 mm stroke741 g
Additional weight per 10 mm stroke42 g
Basic weight with 0 mm stroke1600 g
Additional moving mass per 10 mm stroke25 g
Alternative connectionsSee product drawing
Type of mountingWith swivel mounting on bearing capWith accessories
Pneumatic connectionG1/4
Rod clevis materialCast steelTempered steel
Note on materialsRoHS-compliant
Scraper materialBronze
Cover materialDie-cast aluminumAnodized
Seals materialNBR
Piston rod materialTempered steelHard-chrome-plated
Material of cylinder barrelWrought aluminum alloyAnodized
ASIN, AsinB01E5USDWW
BindingMisc.
CatIndustrial & Scientific
CatId16310091
CatTree16310091 16310161 3021479011 3754081
FeatureAll Orders are Shipped via DHL and a Tracking Number Provided
Height13.385826758 52
Label, Man, Publisher, StudioFESTO
Length13.385826758
ProductTypeNameMECHANICAL_COMPONENTS
TitleFESTO 565756 DWB-63-50-Y-A-G HINGE CYLINDER - SUPPLIED IN PACK OF 1
URLhttp://ecx.images-amazon.com/images/I/31ET3TJFdiL._SL75_.jpg
Unitsinches pixels pounds
Width13.385826758 75

Distributor offers

SellerSKUMOQIn stockMultiplePrices
Coast Pneumatics5657561-211 @ $229.56
sun-source.com565756111 @ $0.00
