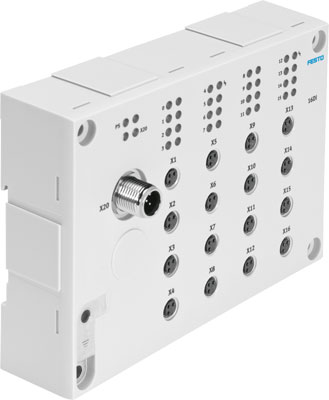

CTSL-D-16E-M8-3 – Coast Pneumatics

Festo . 1387363

Attributes

Brand name, Manufacturer name, BrandFesto
ManufacturerFesto FESTO
Extra Product NameCTSL-D-16E-M8-3 – Coast Pneumatics
Weight250 0.6361879494534 0.6393405598
WeightUnitg
Weight_AttribProduct weight
moq, multiple, tierMinQty1, IO-Link??, number of ports, Case, NumberOfItems, PackageQuantity1
MPN, SKU, Part Number, Model, PartNumber1387363
qtyInStock-2
qtySourceDefault field
tierPrice1409.83
UPC, EAN, EANList, UPCList743270207914
Product Group, ProductGroupBISS
Dimensions W x L x H143 mm x 103 mm x 32 mm
KC charactersKC EMC
Type codeCTSL
Reverse polarity protectionfor operating voltage
Fuse protection (short circuit)Internal electronic fuse per group
Baud rate38.4 kbit/s, 230.4 kbit/s
DC operating voltage range18 V … 30 V
Input debounce time0.5 ms (3 ms, 10 ms, 20 ms parameterizable)
Max residual current per module1.2 A
Max number of inputs16
Nominal operating voltage DC24 V
Electrical isolation between channelsno
Logic current consumption at logic nominal operating voltage??? 35 mA
CE marking (see declaration of conformity)As per EU EMC directive
Corrosion resistance class (CRC)2 – Moderate corrosion stress
Storage temperature-20 ??C … 70 ??C
Degree of protectionIP65IP67
Ambient temperature-5 ??C … 50 ??C
CertificationRCM compliance mark
Product weight250 g
ProtocolIO-Link??I-Port
IO-Link??, Connection technologyDevice, 5-pin
IO-Link??, communication modeCOM2 (38.4 kBd), COM3 (230.4 kBd)
IO-Link??, port classB
IO-Link??, process data width IN2 Byte
IO-Link??, minimum cycle timeDevice 3.2 ms
Input characteristicsIEC1131-T2
Input switching logicPNP (positive switching)
Electrical connection3-pinM816x socket
LED display (bus-specific)X20: I-Port / IO-Link??
LED display (product-specific)1 PS electrical operating voltage2 group diagnostics16 channel status
Type of mountingWith H-railWith through-holeOptionally:
Note on materialsRoHS-compliant
Cover material, Housing materialPA-reinforced
ASIN, AsinB01E5UOL4Q
BindingMisc.
CatIndustrial & Scientific
CatId16310091
CatTree16310091 16310161 3021479011 3754081
FeatureAll Orders are Shipped via DHL and a Tracking Number Provided
Height13.385826758 75
Label, Man, Publisher, StudioFESTO
Length13.385826758
ProductTypeNameMECHANICAL_COMPONENTS
TitleFESTO 1387363 CTSL-D-16E-M8-3 INPUT MODULE - SUPPLIED IN PACK OF 1
URLhttp://ecx.images-amazon.com/images/I/31eBO%2BA7dNL._SL75_.jpg
Unitsinches pixels pounds
Width13.385826758 62

Distributor offers

SellerSKUMOQIn stockMultiplePrices
Coast Pneumatics13873631-211 @ $409.83
sun-source.com1387363111 @ $0.00
