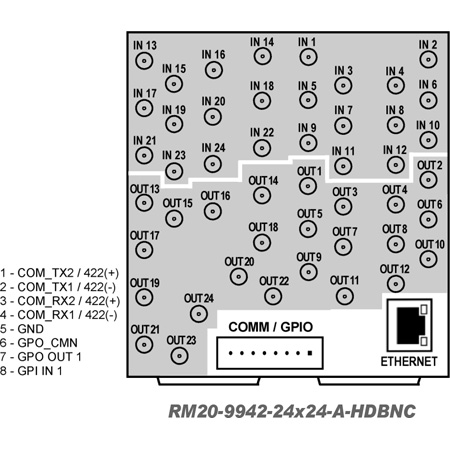

Cobalt Digital <b>RM20-9942-24X24-A-HDBNC</b> is 20-Slot Frame Rear I/O Module (Double Width). (24) SDI/ASI/MADI coaxial inputs, (24) SDI/ASI/MADI coaxial outputs, COMM/GPIO connector, 100/1000 BaseT Ethernet Port (All coaxial connectors HDBNC.).</p><p>RM20-9942-24x24-A-HDBNC is compatible with 9942-RTR-12x12-12G and 9942-RTR-24x24-12G models. When used with the 12x12 model, IN 13 thru IN 24 and OUT 13 thru OUT 24 ports are NC</p>
Gallery
Attributes
Distributor offers
| Seller | SKU | MOQ | In stock | Multiple | Prices |
|---|---|---|---|---|---|
| RM20994224X24AHD | 1 | dropship | 1 | 1 @ $419.00 | |
 unbeatablesale.com | TCNCD390539 | 1 | -2 | 1 | 1 @ $387.53 |
Related on Amazon
As an Amazon Associate, we earn from qualifying purchases. (paid link) CERTAIN CONTENT THAT APPEARS ON THIS SITE COMES FROM AMAZON. THIS CONTENT IS PROVIDED 'AS IS' AND IS SUBJECT TO CHANGE OR REMOVAL AT ANY TIME.
Cobalt Digital RM20994224X24AHD 20-Slot Frame Rear Inputs-Outputs Module for SDI-ASI-Madi Coaxial
Brand: Cobalt Digital
Cobalt Digital RM20994224X24AHDBNC is 20Slot Frame Rear IO Module Double Width 24 SDIASIMADI coaxial inputs 24 SDIASIMADI coaxial outputs COMMGPIO connector 1001000 BaseT Ethernet Port All coaxial connectors HDBNC RM20994224x24AHDBNC is compatible with 9942RTR12x1212G and 9942RTR24x2412G models When used with the 12x12 model IN 13 thru IN 24 and OUT 13 thru OUT 24 ports are NC Features. 24 SDI ASI MADI In. 24 SDI ASI MADI Out. COMM and GPIO. 1001000 BaseT Ethernet Port All coaxial connectors HDBNCSpecifications. Slot 20. Weight 1 lbs
Details
- 24 SDI / ASI / MADI In
- 24 SDI / ASI / MADI Out
- COMM and GPIO
- 100/1000 BaseT Ethernet Port (All coaxial connectors HD-BNC)Specifications
- Slot: 20
Listing
| Binding | Electronics |
|---|---|
| Product group | Speakers |
| Product type | CE_ACCESSORY |
| Part number | RM20994224X24AHD |
| Label | Cobalt Digital |
| Manufacturer | Cobalt Digital |
