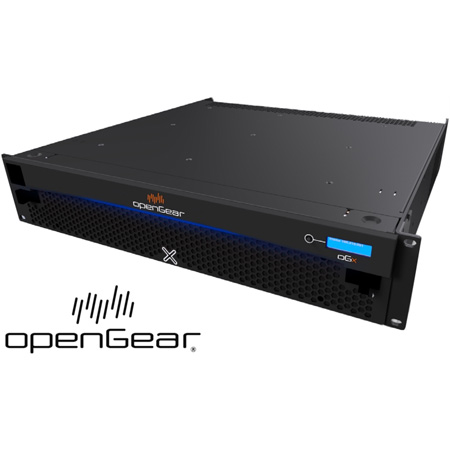

The <strong>OGX-FR-C-P</strong> is an oGx open gear frame with cooling, advanced networking, and SNMP. The oGx is a 2RU high-density openGear&reg; modular frame offering 600 Watts of total power in a high-capacity 20-slot format. It uses the same form factor and DashBoard&trade; remote control as Cobalt's other 20-slot frames and supports all openGear compatible cards and rear I/O modules, but offers significantly more available user power. The oGx is designed to meet the demands of today's most complex IP and hybrid infrastructures, supporting evolving IP and UHD applications.</p><p><strong> Please Note: Cobalt Digital frames can only be purchased with Cobalt Digital cards and i/o modules. Please call for details. </strong></p><p>A new high-power mode allows 23 Watts per slot (460 W user net max). An intelligent fan controller adjusts fan speed with changes in power supply loading and temperature. The single (standard) 600 Watt power supply can fully power a loaded frame, and the addition of a second (optional) supply gives the frame full power redundancy. oGx accommodates 2 front-loaded, hot-swappable power supplies. The split outside location of the power supplies makes installation easy. Each power supply contains an independent cooling fan, status LED, and a front mounted power switch.</p><p>In addition to an integrated LCD display that provides frame name, IP address and reports any alarms, the FrameGlow highly-visible programmable RGB LED bar provides "across-the-room" visibilty of any customizable status or frame ID functions, allowing personnel to see frame status/info literally anywhere in the room.</p><p>The openGear&reg; 3.0 frame offers optional gigabit Ethernet to every slot within the frame chassis, enhancing communication speed, and connection options to all openGear&reg; cards. The openGear&reg; 3.0 frame provides more communication options and flexibility to openGear&reg; card manufacturers. The 21-port Ethernet switch, built in to the frame's network control card, virtually future-proofs the openGear&reg; 3.0 platform. (Gigabit Ethernet is only available with the Advanced Network Control option.) SNMP (optionally available) is loaded direct to the frame eliminating the need for any external gateways and runs on a separate software port allowing for simultaneous control from both DashBoard and SNMP clients. This is useful in applications where system wide monitoring is performed using SNMP and real-time control is performed using DashBoard.</p><p>The oGx uses the same rear I/O modules as our current 20-slot frames, allowing a seamless transition from a current 20-slot frame to the oGx. These rear modules offer a broad selection for a flexible and wide array of interfaces such as coaxial, twisted-pair audio, GPIO, comm, and fiber. Special high-density/high-ventilation rear I/O modules offer even greater packaging density when used with compatible Cobalt&reg; cards.</p>
