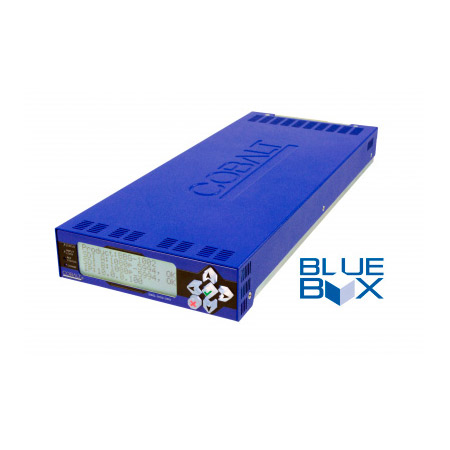

The all-new Cobalt BBG-1002-UDX Multi-Input Modular Up-Down-Cross Converter/Framesync with Auto-Changeover and Character Burn provides a high-density standalone modular unit that offers unprecedented multi-input support, flexibility, and ease of use and integration. Multiple SDI input ports allow manual selection of input, or failover to alternate inputs (Auto-Changeover) on loss of input conditions. A Quality Check option allows failover to alternate inputs based on user-configurable subjective criteria such as black/frozen frame or audio silence. Two discrete character burn strings can be inserted on output video, with each string inserted as static text and/or insert only upon LOS. Import of user trouble slate graphics is also supported in addition to standard test pattern insert as an input LOS marker. A moving-box insertion can be enabled to serve as a dynamic raster confidence check even when the input video image is static.</p><p>The up/down/cross convert scaler is specifically designed for broadcast video progressive and interlaced formats, with full ARC control suitable for conversions to or from 4:3 and 16:9 aspect ratios. Timecode can be received and prioritized among any standard SMPTE embedded or audio LTC timecode, and in turn outputted and burned-in on the output video. </p><p>The BBG-1002-UDX uses a built-in web server that allows control/monitor over computers or smart devices from anywhere accessible over the web; no special apps or plug-ins are required for remote control. The compact 1/3-rack size of the BBG-1002-UDX allows 3 units to be installed in a 1RU space (an optional mounting tray is available that provides secure mounting of the units to a standard 19" frame). GPIO allows direct input routing control and status monitoring.</p>
