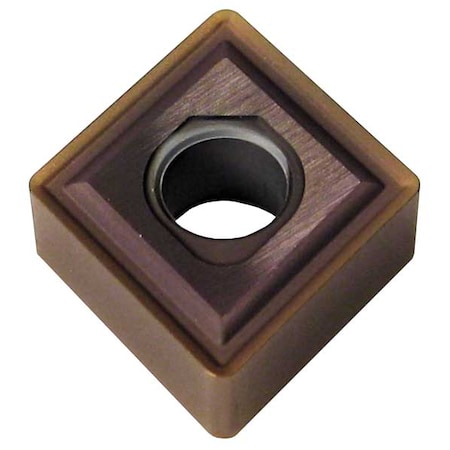

Coated Carbide Insert, CNMG643EMU-AC520U

Sumitomo . CNMG643EMU-AC520U

Gallery

Attributes

Brand name, Manufacturer name, ManufacturerSumitomo
Category, CategoryL1Cutting Tools
CategoryL2Indexable Tools
CategoryL3Rhombic Turning Inserts
DimensionUnitinch
Extra Product NameCoated Carbide Insert, CNMG643EMU-AC520U
UnitOfMeasureEA
Weight0.64
WeightUnitlbs
cali_prop65_orglabel, cali_prop65_whtlabelFalse
countryOfOriginJP
extendedLead, width2
extendedQty-2
height0.5
length4.88
moq, multiple10
MPN, ANSI NumberCNMG643EMU-AC520U
qtyInStock0
SKUG3767793
tierMinQty11
tierPrice127.03
urlhttps://www.zoro.com/sumitomo-coated-carbide-insert-cnmg643emu-ac520u-cnmg643emu-ac520u/i/G3767793/
Cast Iron (K) Compatibility, Super Alloy (S) Compatibility, Stainless (M) Compatibility, Chip-BreakerYes
ItemDiamond Turning Insert
CoatingSuper ZX TiAlN/AlCrN-PVD
Insert StyleCNMG
Hardened (H) Compatibility, Steel (P) Compatibility, Non Ferrous (N) CompatibilityNo
For Use WithDCLN, MCLN, Toolholders, A-MCLN Boring Bars
Insert Thickness0.0625"
ISO NumberCNMG190612NMU
Mounting Hole Dia0.313
Rake, Relief Angle, Clearance Angle0 Degrees
Insert Material, Material - Machining, MaterialCarbide
Nose Radius0.0472"
Inscribed Circle3/4 in
Cutting DirectionNeutral
No of Edges, Number of Cutting Edges4
Workpiece CompatibilityCast Iron (K), Stainless (M), Super Alloy (S)
Mounting StyleClamp
Insert ShapeDiamond
Grade, Manufacturer GradeAC520U
Insert ApplicationRoughing
Insert Size643
ShapeRhombic
Finish - MachiningTiAlN+AlCrN
ANSI CodeCNMG643EMU
Insert Holding TypeStraight Hole
Primary Material ApplicationNickel, Stainless Steel, Steel, Titanium
Chip-Breaker CodeEMU
Thickness1/4 in
Included Angle80 Degrees
FeaturesExcellent Fracture Resistance
Measurement SystemFractional Inch
Primary Material Application ISO CodeM, P, S
Corner Radius3/64 in
Coating ProcessPVD
Chip-Breaker StyleDouble
Cutting ApplicationTurning
Country of Origin (subject to change)Japan

Distributor offers

SellerSKUMOQIn stockMultiplePrices
ZoroG376779310101 @ $27.03
Grainger4KAA411
sustainablesupply.comC14172621-211 @ $30.08
