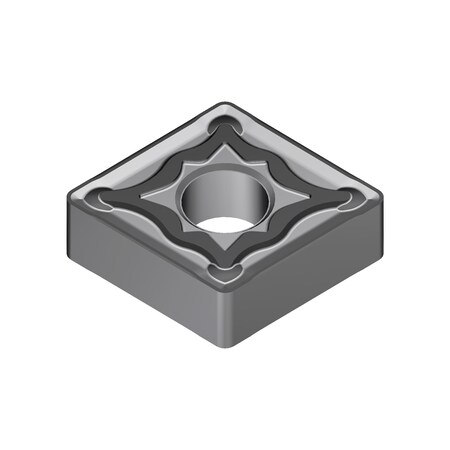

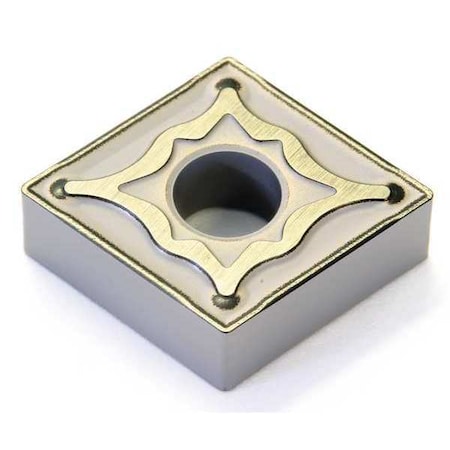

Diamond Turning Insert, Chip-Breaker Code EUX, Inscribed Circle 5/8 in, Absotech Platinum, ANSI Code CNMG542EUX, Chip-Breaker Style Double, Clearance Angle 0 Degrees , Coating Process CVD

Sumitomo . CNMG542EUX-AC8025P

Gallery

Attributes

Brand name, Manufacturer name, ManufacturerSumitomo
CategoryId, CategoryIdL316419
CategoryIdL1, height, Corner Radius2
CategoryIdL26049
CategoryL1Tools & Machining
CategoryL2Cutting Tools
CategoryL3Indexable Tools
CategoryL4Rhombic Turning Inserts
DimensionUnitinch
GTIN, UPCNone
GraingerSku52EZ53
UnitOfMeasureEA
Weight0.05
WeightUnitlbs
cali_prop65_messageWARNING: Cancer - www.P65Warnings.ca.gov
cali_prop65_orglabelFalse
cali_prop65_warnmsgscenario, Inscribed Circle5
cali_prop65_whtlabelTrue
countryOfOriginJP
jsonUrlData924526ffbdad25e5923b
length0.5
moq, multiple, tierMinQty11
MPNCNMG542EUX-AC8025P
qtyInStock10
qtyInStockOverride-2
SKUG6328397
snippetDiamond Turning Insert, Chip-Breaker Code EUX, Inscribed Circle 5/8 in, Absotech Platinum, ANSI Code CNMG542EUX, Chip-Breaker Style Double, Clearance Angle 0 Degrees , Coating Process CVD
tierPrice1172.50
urlhttps://www.zoro.com/sumitomo-diamond-turning-insert-diamond-58-in-cnmg-80-degrees-132-in-carbide-cnmg542eux-ac8025p/i/G6328397/
width4.88
Insert Size542
Mounting Hole Dia0.250"
Nose Radius0.0313"
ItemDiamond Turning Insert
Insert ShapeDiamond
Insert StyleCNMG
Included Angle80 Degrees
Chip-Breaker, Steel (P) CompatibilityYes
GradeAC8025P
Material, Insert MaterialCarbide
Workpiece CompatibilityCast Iron (K), Stainless (M), Steel (P)
Insert ApplicationMedium
CoatingUncoated
Cutting DirectionNeutral
Mounting StyleTop and Hole Clamping
No of Edges4
Non Ferrous (N) Compatibility, Super Alloy (S) CompatibilityNo
ISO NumberCNMG160608N-UX
For Use WithToolholders, Boring Bars

Distributor offers

SellerSKUMOQIn stockMultiplePrices
ZoroG632839711011 @ $172.50
ZoroG501013315111 @ $149.00
