Sumitomo

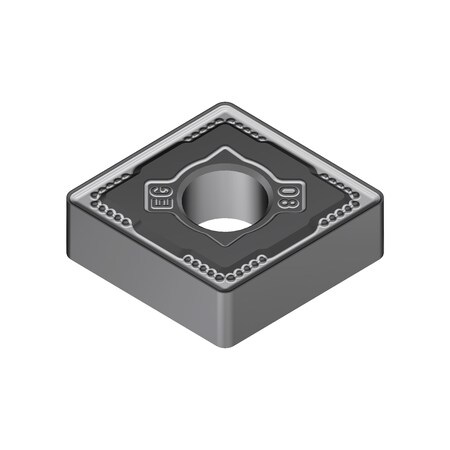

Sumitomo . CNMG544EEG-AC6030M

Gallery

Attributes

Brand name, Manufacturer name, Manufacturer, Extra Product NameSumitomo
DimensionUnitinch
GraingerSku52FA05
UPCNone
UnitOfMeasureEA
Weight0.05
WeightUnitlbs
cali_prop65_messageWARNING: Cancer - www.P65Warnings.ca.gov
cali_prop65_orglabelFalse
cali_prop65_warnmsgscenario5
cali_prop65_whtlabelTrue
countryOfOriginJP
extendedLead26
extendedQty-2
height2
jsonUrlData924526ffbdad25e5923b
length0.5
moq, multiple10
MPN, ANSI NumberCNMG544EEG-AC6030M
qtyInStock0
qtyInStockOverrideDrop Ship
SKUG6327889
tierMinQty11
tierPrice113.24
urlhttps://www.zoro.com/sumitomo-diamond-turning-insert-diamond-58-in-cnmg-80-degrees-116-in-carbide-cnmg544eeg-ac6030m/i/G6327889/
width4.88
ItemDiamond Turning Insert
Insert ShapeDiamond
Insert StyleCNMG
Inscribed Circle5/8 in
Insert Size544
Included Angle80 Degrees
Chip-Breaker, Stainless (M) CompatibilityYes
Grade, Manufacturer GradeAC6030M
Material, Insert Material, Material - MachiningCarbide
Corner Radius1/16 in
Workpiece CompatibilityStainless (M)
Insert ApplicationMedium
Insert Thickness0.2500"
For Use WithToolholders, Boring Bars
ISO NumberCNMG160616N-EG
Mounting Hole Dia0.250"
Cast Iron (K) Compatibility, Super Alloy (S) Compatibility, Non Ferrous (N) Compatibility, Steel (P) Compatibility, Hardened (H) CompatibilityNo
Mounting StyleTop and Hole Clamping
Coating, Coating ProcessCVD
RakePositive
Nose Radius0.0625"
No of Edges, Number of Cutting Edges4
Cutting DirectionNeutral
FeaturesFracture Resistant
Cutting ApplicationTurning
Finish - MachiningAbsotech
Primary Material ApplicationStainless Steel
Chip-Breaker StyleDouble
ShapeRhombic
Clearance Angle0 Degrees
Primary Material Application ISO CodeM
Thickness1/4 in
ANSI CodeCNMG544EEG
Chip-Breaker CodeEEG
Measurement SystemFractional Inch
Insert Holding TypeStraight Hole
Country of Origin (subject to change)Japan

Distributor offers

SellerSKUMOQIn stockMultiplePrices
ZoroG632788910101 @ $13.24
ZoroG801012667111 @ $135.65
