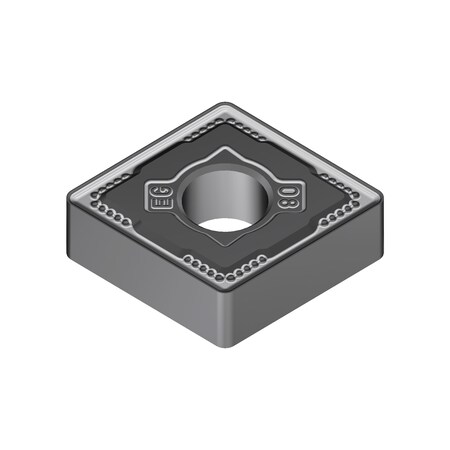

Diamond Turning Insert, Chip-Breaker Code EEG, Inscribed Circle 5/8 in, Absotech Platinum, ANSI Code CNMG543EEG, Chip-Breaker Style Double, Clearance Angle 0 Degrees , Coating Process CVD

Sumitomo . CNMG543EEG-AC8025P

Gallery

Attributes

Brand name, Manufacturer name, ManufacturerSumitomo
CategoryId, CategoryIdL316419
CategoryIdL1, height2
CategoryIdL26049
CategoryL1Tools & Machining
CategoryL2Cutting Tools
CategoryL3Indexable Tools
CategoryL4Rhombic Turning Inserts
DimensionUnitinch
GTIN, UPCNone
GraingerSku52EZ59
UnitOfMeasureEA
Weight0.05
WeightUnitlbs
cali_prop65_messageWARNING: Cancer - www.P65Warnings.ca.gov
cali_prop65_orglabelFalse
cali_prop65_warnmsgscenario, Inscribed Circle5
cali_prop65_whtlabelTrue
countryOfOriginJP
jsonUrlData924526ffbdad25e5923b
length0.5
moq, multiple, tierMinQty11
MPN, ANSI NumberCNMG543EEG-AC8025P
qtyInStock10
qtyInStockOverride-2
SKUG6328336
snippetDiamond Turning Insert, Chip-Breaker Code EEG, Inscribed Circle 5/8 in, Absotech Platinum, ANSI Code CNMG543EEG, Chip-Breaker Style Double, Clearance Angle 0 Degrees , Coating Process CVD
tierPrice1172.50
urlhttps://www.zoro.com/sumitomo-diamond-turning-insert-diamond-58-in-cnmg-80-degrees-364-in-carbide-cnmg543eeg-ac8025p/i/G6328336/
width4.88
Insert Size543
Corner Radius3
Mounting Hole Dia0.250"
Nose Radius0.0469"
ItemDiamond Turning Insert
Insert ShapeDiamond
Insert StyleCNMG
Included Angle80 Degrees
Chip-Breaker, Cast Iron (K) CompatibilityYes
GradeAC8025P
Material, Insert MaterialCarbide
Workpiece CompatibilityCast Iron (K), Stainless (M), Steel (P)
Insert ApplicationMedium
ISO NumberCNMG160612N-EG
Mounting StyleTop and Hole Clamping
Non Ferrous (N) Compatibility, Super Alloy (S) CompatibilityNo
Cutting DirectionNeutral
Insert Thickness0.2500"
For Use WithToolholders, Boring Bars

Distributor offers

SellerSKUMOQIn stockMultiplePrices
ZoroG632833611011 @ $172.50
ZoroG701012378111 @ $142.47
