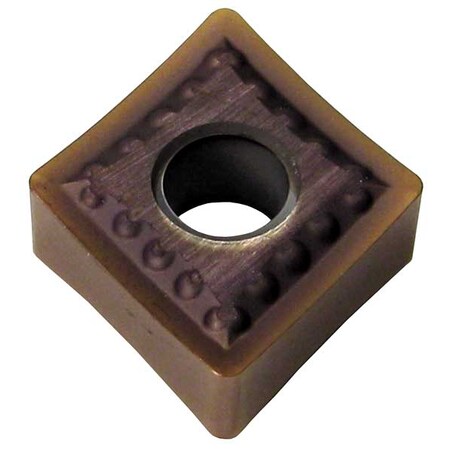

Diamond Turning Insert, Diamond, 1/2 in, CNMG, 80 Degrees, 1/32 in, Carbide

Sumitomo . CNMG432EUP-AC630M

Gallery

Attributes

Brand name, Manufacturer name, ManufacturerSumitomo
DimensionUnitinch
Extra Product NameDiamond Turning Insert, Diamond, 1/2 in, CNMG, 80 Degrees, 1/32 in, Carbide
UnitOfMeasureEA
Weight0.25
WeightUnitlbs
cali_prop65_orglabel, cali_prop65_whtlabelFalse
countryOfOriginJP
height0.44
length3.5
moq, multiple, qtyInStock10
MPN, ANSI NumberCNMG432EUP-AC630M
SKUG3758203
tierMinQty11
tierPrice1141.30
urlhttps://www.zoro.com/sumitomo-diamond-turning-insert-diamond-12-in-cnmg-80-degrees-132-in-carbide-cnmg432eup-ac630m/i/G3758203/
width1.5
ItemDiamond Turning Insert
Insert ShapeDiamond
Insert StyleCNMG
Inscribed Circle1/2 in
Insert Size432
Included Angle80 Degrees
Chip-Breaker, Stainless (M) Compatibility, Cast Iron (K) CompatibilityYes
Grade, Manufacturer GradeAC630M
Material, Insert Material, Material - MachiningCarbide
Corner Radius1/32 in
Workpiece CompatibilityCast Iron (K), Stainless (M)
Insert ApplicationMedium
Relief Angle, Clearance Angle0 Degrees
Mounting Hole Dia0.203
Non Ferrous (N) Compatibility, Steel (P) Compatibility, Super Alloy (S) Compatibility, Hardened (H) CompatibilityNo
Insert Thickness0.1875"
Mounting StyleClamp
Nose Radius0.0312"
RakePositive
For Use WithDCLN, MCLN, Toolholders, A-MCLN Boring Bars
No of Edges, Number of Cutting Edges4
Cutting DirectionNeutral
ISO NumberCNMG120408NUP
CoatingSuper FF TiCN/Al2O3/TiN CVD
Insert Holding TypeStraight Hole
Chip-Breaker CodeEUP
Thickness3/16 in
Primary Material ApplicationStainless Steel, Steel
Coating ProcessCVD
Cutting ApplicationTurning
Measurement SystemFractional Inch
Finish - MachiningAl203+TiCN
Chip-Breaker StyleDouble
ShapeRhombic
Primary Material Application ISO CodeM, P
ANSI CodeCNMG432EUP
Country of Origin (subject to change)Japan

Distributor offers

SellerSKUMOQIn stockMultiplePrices
ZoroG37582031010101 @ $141.30
Grainger4JZR511
sustainablesupply.comC14172051-211 @ $14.99
