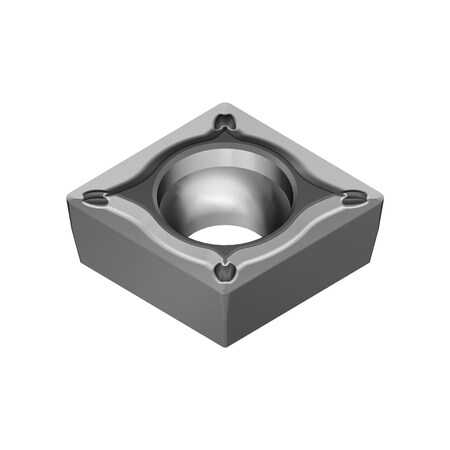

Diamond Turning Insert, Chip-Breaker Code ESU, Inscribed Circle 1/4 in, Absotech Platinum, ANSI Code CCMT21.51ESU, Chip-Breaker Style Single, Clearance Angle 7 Degrees , Coating Process CVD

Sumitomo . CCMT21.51ESU-AC8025P

Gallery

Attributes

Brand name, Manufacturer name, ManufacturerSumitomo
CategoryId, CategoryIdL316419
CategoryIdL1, Inscribed Circle2
CategoryIdL26049
CategoryL1Tools & Machining
CategoryL2Cutting Tools
CategoryL3Indexable Tools
CategoryL4Rhombic Turning Inserts
DimensionUnitinch
GTIN, UPCNone
GraingerSku52EV24
UnitOfMeasureEA
Weight0.01
WeightUnitlbs
cali_prop65_messageWARNING: Cancer - www.P65Warnings.ca.gov
cali_prop65_orglabelFalse
cali_prop65_warnmsgscenario5
cali_prop65_whtlabelTrue
countryOfOriginJP
height0.44
jsonUrlData924526ffbdad25e5923b
length3.5
moq, multiple, tierMinQty1, Corner Radius1
MPN, ANSI NumberCCMT21.51ESU-AC8025P
qtyInStock10
qtyInStockOverride-2
SKUG6332649
snippetDiamond Turning Insert, Chip-Breaker Code ESU, Inscribed Circle 1/4 in, Absotech Platinum, ANSI Code CCMT21.51ESU, Chip-Breaker Style Single, Clearance Angle 7 Degrees , Coating Process CVD
tierPrice176.90
urlhttps://www.zoro.com/sumitomo-diamond-turning-insert-diamond-14-in-ccmt-80-degrees-164-in-carbide-ccmt2151esu-ac8025p/i/G6332649/
width1.5
Insert Size21.51
Nose Radius0.0156"
Mounting Hole Dia0.110"
ItemDiamond Turning Insert
Insert ShapeDiamond
Insert StyleCCMT
Included Angle80 Degrees
Chip-Breaker, Stainless (M) Compatibility, Steel (P) CompatibilityYes
GradeAC8025P
Material, Insert MaterialCarbide
Workpiece CompatibilityCast Iron (K), Stainless (M), Steel (P)
Insert ApplicationFinishing
CoatingCVD
Mounting StyleTop and Hole Clamping
Super Alloy (S) Compatibility, Hardened (H) CompatibilityNo
Insert Thickness0.0940"
For Use WithToolholders, Boring Bars

Distributor offers

SellerSKUMOQIn stockMultiplePrices
ZoroG633264911011 @ $76.90
ZoroG601015721111 @ $63.55
