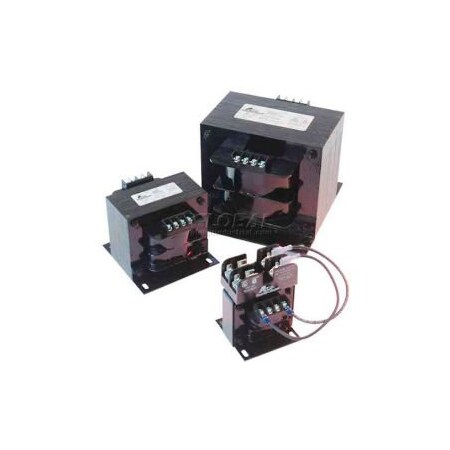

Acme Electric Corporation - TB81216 - OPEN CORE & COIL INDUSTRIAL CONTROL TRANSFORMER, 240 X 480, 230 X 460, 220 X 440 - RS

600 volt class and below. 50 - 1000 VA, 50/60Hz. 80°C temperature rise, 130°C insulation class. Constructed with high quality silicon steel lamination to minimize core losses and increase efficiency. Designs incorporate precision split bobbin wound coils for improved regulation. Primary fuse blocks and secondary fuse kits available and easily adaptable. Series-parallel connecting links save wiring and labor costs. Terminal blocks allow full access for ring terminals for easy installation even with solid strand conductors. Integrally molded terminal blocks with isolation barriers to prevent arc over. Footprint matches TA series for easy interchangeability. Copper windings on all groups. 240 x 480, 230 x 460, 220 x 440 Primary Volts; 120/115/110 Secondary Volts; 1° 50/60Hz, Lot of 2

' Control Transformer, VA Rating 750VA, Input Voltage 240/480VAC, Output Voltage 120VAC, 80 Degrees C Temp. Rise, Fused No, 50/60 Hz, Transformer Type Wire-Wound, 1 Phase, Mounting Panel, Enclosure Finish Epoxy Resin Varnish, Height 4.5 In., Depth 6.69 In., Width 5.25 In., Standards UL Listed, CSA Approved, Includes 2-Pole Class In.CC In. Fuse Block, Manufacturers Warranty Length 1 yr. '
