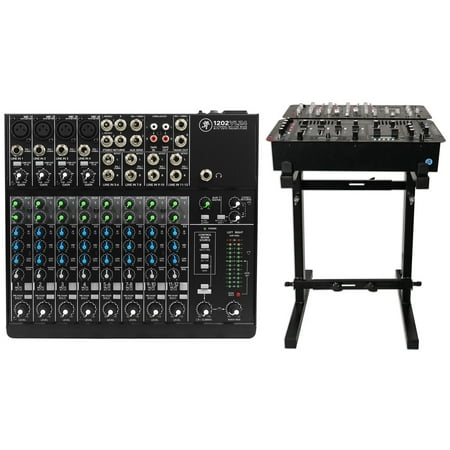

Package: Mackie 1202VLZ4 12-channel Compact Analog Low-Noise Mixer with 4 High-Quality Onyx Mic Preamps For Amazing Sound Clarity + Rockville RXS20 Portable Mixer Stand
Gallery
Attributes
Distributor offers
| Seller | SKU | MOQ | In stock | Multiple | Prices |
|---|---|---|---|---|---|
| Walmart | 927118259 | 1 | -2 | 1 | 1 @ $279.99 |
Related on Amazon
As an Amazon Associate, we earn from qualifying purchases. (paid link) CERTAIN CONTENT THAT APPEARS ON THIS SITE COMES FROM AMAZON. THIS CONTENT IS PROVIDED 'AS IS' AND IS SUBJECT TO CHANGE OR REMOVAL AT ANY TIME.
Mackie 1202VLZ4 12-channel Compact Analog Low-Noise Mixer w/ 4 ONYX Preamps Bundle with Rockville RXS20 Portable Mixer Stand - Adjustable Height and Width!
Brand: Mackie
Channel Alt / Mute switch engaged: 85 dBu. Channel gain knob down: 87 dBu. Frequency Response Mic input to main output (gain @ unity). +0, 1 dB, 20 Hz to 50 kHz. +0, 3 dB, <10 Hz to >100 kHz. Equivalent Input Noise (EIN)(Mic input to insert send out, max gain). 150 O termination: 128.5 dBu, 20 Hz20 kHz. Common Mode Rejection Ratio (CMRR). 1 kHz: better than 70 dB. Maximum Levels. Mic in: +22 dBu. Tape in: +16 dBu. All other inputs: +22 dBu. Main mix XLR out: +28 dBu. All other outputs: +22 dBu. Impedances. Mic in: 2.5 k Ohm. Channel insert return: 2.5 k Ohm. All other inputs: 10 k Ohm or greater. Tape out: 1.1 k Ohm. All other outputs: 120 Ohm. EQ. High Shelving: 15 dB @ 12 kHz. Mid Peaking: 15 dB @ 2.5 kHz. Low Shelving: 15 dB @ 80 Hz. AC Power Requirements. Power Consumption: 25 watts. US, JP: 100 120 VAC, 50 60 Hz. EU, UK, AU, CN: 200 240 VAC, 50 60 Hz. Operating Temperature: 0 40 C, 32 104 F. Fuse Rating. 100-120V: 500 mA slo blo, 5 x 20 mm. 220-240V: 250 mA slo blo, 5 x 20 mm. Physical Properties (product). 10.7" x 3" x 11". Weight 6.5 lb / 3.0 kg. Physical Properties (packaged product). 6" x 14" x 13". Weight 8.0 lb / 3.6 k. RockvilIe RXS20 Heavy duty mixer stand. Universal with any mixer up to 300 LBS!. Collapsable for maximum portability and easy storage. Adjustable width (13.8 23.6 Inches) making this universal for any mixer and other gear. Adjustable Height from 24 36 (Inches). Steel stand with sturdy arms. Large enough for mixers, DJ gear, keyboards, and more. Load capacity: 300 LBS. 1 MM thick steel all around! This piece is rock solid! At RockvilIe we only make top quality gear!. Best quality black powder paint coating. Soft padding on mounting platform to protect your audio devices. Rubber feet on the end of each leg when casters are not in place. 14.5 LBS (portable and light-weight). Specifications: Weight Capacity: 300 lbs. Height Adjustment.: 24-36. Width Adjustment: 13.8-23.6. Base leg length: 19.5. Top arm
Details
- Package Includes: (1) Mackie 1202VLZ4 12-channel Compact Analog Low-Noise Mixer. (1) RockvilIe RXS20 Portable Mixer Stand. Features: Mackie 1202VLZ4 12-channel Compact Mixer. 12-channel mixer featuring Mackie signature high-headroom/low-noise design 4 boutique-quality Onyx mic preamps Ultra-wide 60dB gain range 128.5 dB dynamic range +22 dBu line input handling Extended frequency response Distortion under 0.0007% (20Hz 50kHz). 4 boutique-quality Onyx mic preamps. Ultra-wide 60dB gain range
- 128.5 dB dynamic range. +22 dBu line input handling. Extended frequency response. Distortion under 0.0007% (20Hz 50kHz). Improved RF rejection perfect for broadcast applications. Phantom power for condenser mics. 12 high-headroom line inputs. 4 balanced inserts perfect for integrating outboard gear. 3-band EQ (80Hz, 2.5kHz, 12kHz). 18 dB/oct 75Hz low-cut filter on mic input channels. 2 aux sends, level, pan and PFL solo on each channel
- 2 stereo returns for connecting FX processor or other stereo source. ALT 3/4 stereo bus for added routing flexibility. Control room / phones source matrix. High-resolution 12-segment stereo meters. Sealed rotary controls resist dust and grime. Built-Like-A-Tank rugged steel chassis with powder-coat finish. High-visibility, high-contrast controls deliver convenient at-a-glance visual feedback. Rack-mountable design using optional rack ear kit. Multi-voltage power supply for worldwide use
- 12-channel mixer featuring Mackie signature high-headroom/low-noise design. 4 boutique-quality Onyx mic preamps. Ultra-wide 60dB gain range. 128.5 dB dynamic range. +22 dBu line input handling. Extended frequency response. Distortion under 0.0007% (20Hz 50kHz). Details: Main Mix Noise. (20 Hz20 kHz bandwidth, 1/4" main out, channels 1-4 gain @ unity, channel EQs flat, all channels assigned to main mix, channels 1 and 3 panned left, 2 and 4 panned right.)
- Main mix knob down, channel gain knobs down: 100 dBu. Main mix knob @ unity, channel gain knobs down: 86.5 dBu. (90 dB Signal to Noise Ratio, ref +4 dBu). Main mix knob @ unity, channel gain knobs @ unity: 84.5 dBu. Total Harmonic Distortion (THD). (1 kHz @ 30 dB gain, 20 Hz20 kHz bandwidth) Mic pre @ insert <0.0007%. Attenuation / Crosstalk. (1 kHz relative to 0 dBu, 20 Hz20 kHz bandwidth, line in, 1/4"main out, gain @ unity). Main mix knob down: 75 dBu
Listing
| Product group | Musical Instruments |
|---|---|
| Product type | SOUND_AND_RECORDING_EQUIPMENT |
| Model | 1202VLZ4+RXS20 |
| Part number | 1202VLZ4+RXS20 |
| Label | MACKIE |
| Manufacturer | MACKIE |
Catalog
| Category | Musical Instruments |
|---|---|
| MPN | 1202VLZ4+RXS20 |
| UPC | 613815994459 |
| EAN | 613815994459 |
| Product group | Musical Instruments |
| Product type | SOUND_AND_RECORDING_EQUIPMENT |
| Manufacturer | MACKIE |
