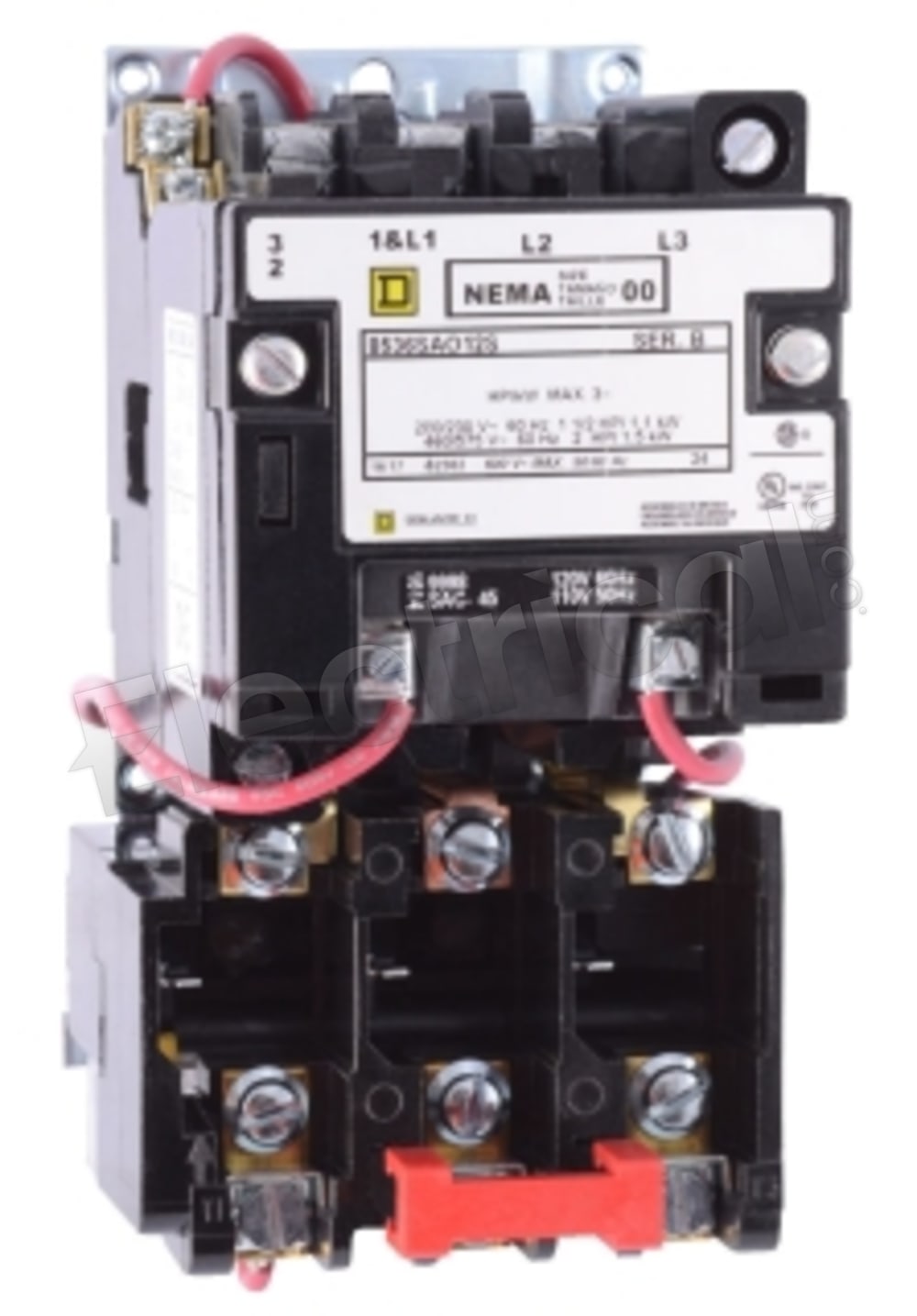

SQUARE D . 8536SAO11V03

NEMA Magnetic Motor Starters with Standard Overload Relays Melting alloy thermal overload relays Class 20 thermal protection 2- or 3-pole, 60/50 Hz, 600VAC max. Thermal units sold separately.Full-voltage starters start and stop 1- and 3-phase AC motors. Manual push-to-test and visible trip indicator. Trip-free construction allows overload relay to trip even if reset lever is blocked or in the reset position. Normally open holding circuit contact for 3-wire control. Angled contacts provide high contact pressure and positive seating. Spring-assisted gravity dropout on de-energizing contacts quickly extinguishes any arcing.UL Listed and CSA Certified.<br /><br /> Item: Magnetic Motor Starter<br /> NEMA Size: 00<br /> Amps AC: 9<br /> Coil Volts: 240VAC<br /> Enclosure NEMA Rating: No Enclosure<br /> Action: Nonreversing<br /> Number of Poles: 2<br /> HP @ 1 Phase - 120V: 1/3<br /> HP @ 1 Phase - 230V: 1<br /> Height: 4.34"<br /> Width: 3.22"<br /> Depth: 4.22"<br /> Standards: UL Listed/CSA Certified<br /> Includes: Melting Alloy Thermal Overload Relay and Instantaneous Magnetic Trip Mechanism<br /> Starter Type: NEMA<br /> Hz: 50/60
