Full Voltage, Non Reversing; 1 1/2 Hp At 200/230 Vac 50/60 Hz, 2 Hp At 460/575 Vac 50/60 Hz; 9 Ampere; 3 Phase; Coil Voltage 220 V At 50 Hz, 240 V At 60 Hz; Size Nema 00; Nema 1 Enclosure; Overloads Melting Alloy; Nema Construction Standard; 8536 Model

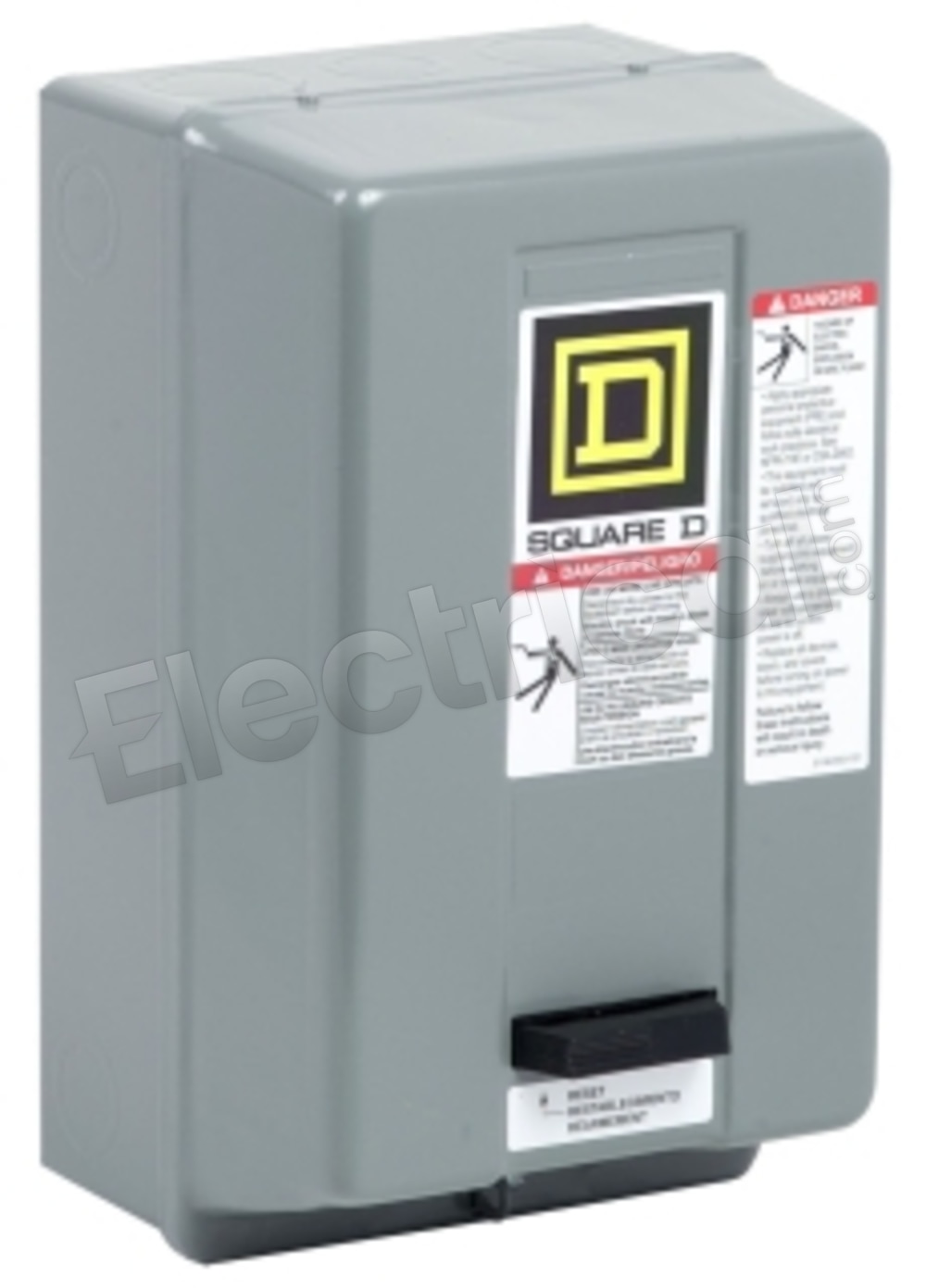

Mfr Brand Name: SQUARE D / Catalog No.: 8536SAG12V03 / Product Name: SQUARE D 8536SAG12V03 U Coil120V 8536 USED / Amps: 9 / NEMA: 00 / Volts: 480 / Poles: 3 / Model: 8536 / Electrically Held: Yes / Normally Open: 1 / Normally Closed: 1 / Coil: 120 / Overload: IEC / Enclosure: N1

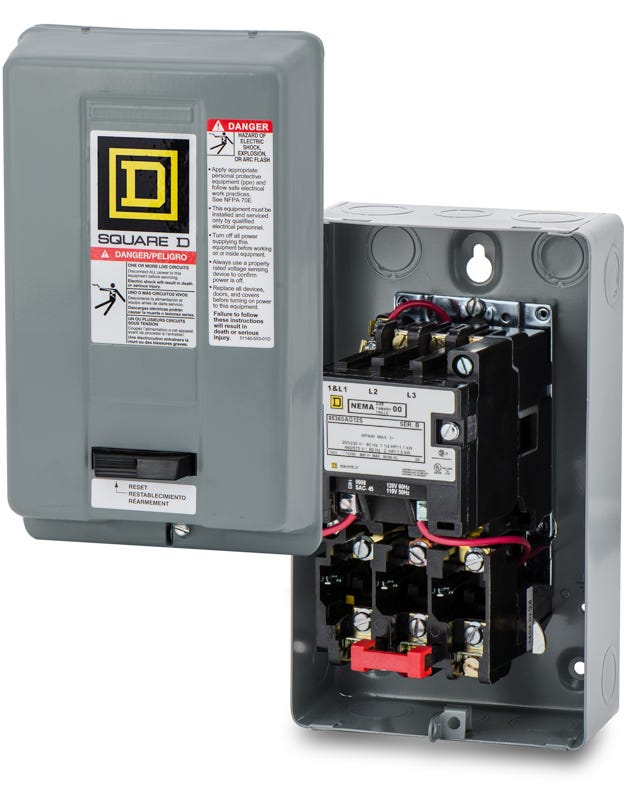

NEMA Magnetic Motor Starters with Standard Overload Relays Melting alloy thermal overload relays Class 20 thermal protection 2- or 3-pole, 60/50 Hz, 600VAC max. Thermal units sold separately.Full-voltage starters start and stop 1- and 3-phase AC motors. Manual push-to-test and visible trip indicator. Trip-free construction allows overload relay to trip even if reset lever is blocked or in the reset position. Normally open holding circuit contact for 3-wire control. Angled contacts provide high contact pressure and positive seating. Spring-assisted gravity dropout on de-energizing contacts quickly extinguishes any arcing.UL Listed and CSA Certified.<br /><br /> Item: Magnetic Motor Starter<br /> NEMA Size: 00<br /> Amps AC: 9<br /> Coil Volts: 240VAC<br /> Enclosure NEMA Rating: 1<br /> HP @ 3 Phase - 240V: 1-1/2<br /> HP @ 3 Phase - 480V: 2<br /> Action: Nonreversing<br /> Number of Poles: 3<br /> HP @ 3 Phase - 208V: 1-1/2<br /> HP @ 3 Phase - 575V: 2<br /> Height: 10"<br /> Width: 6"<br /> Depth: 5.56"<br /> Standards: UL Listed/CSA Certified<br /> Starter Type: NEMA<br /> Hz: 50/60<br />
