Air Lift Performance . 16190

Max Amp Draw: 23. Duty Cycle: 33%. Fill Rate (5 gallons): 0-145psi – 6:51 min; 110-145psi – 2:04 min. Air Lift offers 2-stage, 12-volt air compressors for all needs and budgets. Choose smaller ones for basic load leveling needs, or choose a set of two paired compressors to fill large air tanks fast, operate commercial vehicle applications, or power high-performance air springs continuously. Standard compressors are rated for 150 psi to match all Air Lift tank ratings, and heavy-duty ones come with 200 psi capacity.

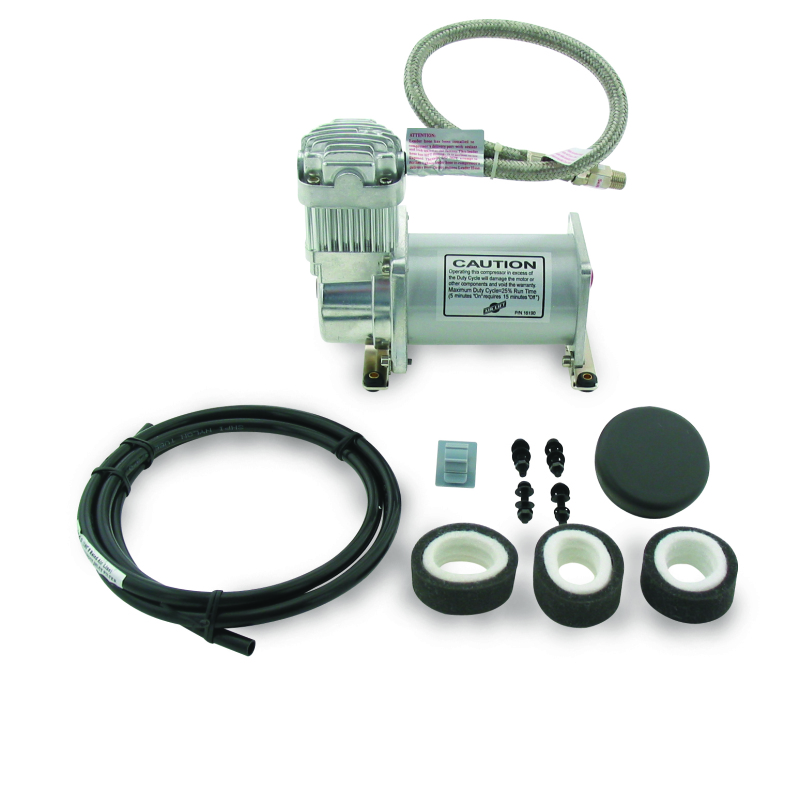

The 300C is a compressor that works with low amp draw. Features include a standard 1/4" stainless steel braided leader hose with inline check valve and insulated wiring for simple installation. Must be used with a 150 PSI or lower pressure, non-adjustable pressure switch when used with an air tank.16190 SPECIFICATIONS: 12-Volt Permanent Magnetic Motor Duty Cycle: 33% @ 100 PSI Max. Working Pressure: 150 PSI Amp Draw: 19 Amps Min. Ambient Temp: -40deg F Max. Ambient Temp: 158deg F Dimensions: 8.00" L x 4.00" W x 7.05" HNet Weight: 6.95 lbs. 300 SERIES STANDARD FEATURES: Oil-less Design High Performance PTFE Piston Ring Stainless Steel Valves Moisture and Dust Resistant Gearless Direct Drive Motor Anodized Aluminum Alloy Cylinder Automatic Reset Thermal Overload Protector Mounting Plates with Vibration Isolators Inline Check Valve Remote Mountable Intake Filter Assembly 300 Tank Fill Rates 3 Gallon Air Tank Fill Rate 0 To 105 PSI 2 Min. 38 Seconds 0 To 145 PSI 4 Min. 05 Seconds 85 To 105 PSI 30 Seconds 110 To 145 PSI 1 Min. 11 Seconds 5 Gallon Air Tank Fill Rate 0 To 105 PSI 4 Min. 31 Seconds 0 To 145 PSI 6 Min. 51 Seconds 85 To 105 PSI 55 Seconds 110 To 145 PSI 2 Min. 04 Seconds,
