Air Lift

Replacement Compressor.

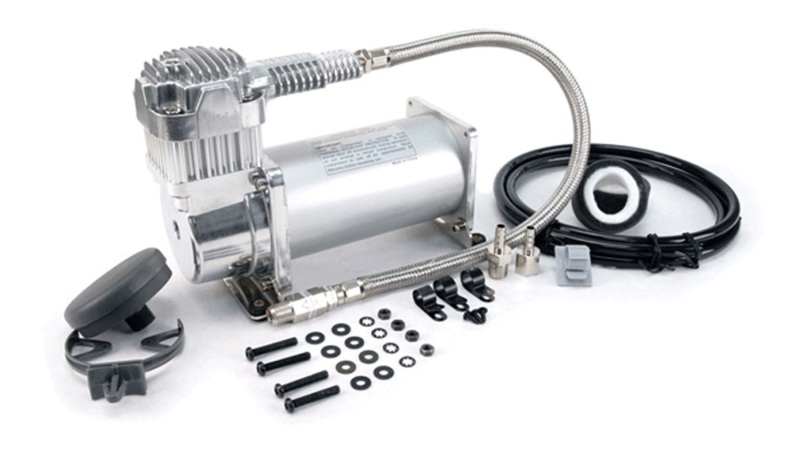

The 400C is a 33% duty cycle compressor that works quickly and efficiently putting out a massive 2.54 CFM flow at zero PSI head pressure. Features include a standard 1/4" stainless steel braided leader hose with inline check valve and insulated wiring for simple installation. Must be used with a 150 PSI or lower pressure, non-adjustable pressure switch when used with an air tank.16400 SPECIFICATIONS: 12-Volt Permanent Magnetic Motor Duty Cycle: 33% @ 100 PSI Max. Working Pressure: 150 PSI Amp Draw: 26 Amps Min. Ambient Temp: -40deg F Max. Ambient Temp: 158deg F Dimensions: 9.00" L x 4.00" W x 7.00" H Net Weight: 8.00 lbs. 400 SERIES STANDARD FEATURES: Oil-less Design High Performance PTFE Piston Ring Stainless Steel Valves Moisture and Dust Resistant Gearless Direct Drive Motor Anodized Aluminum Alloy Cylinder Automatic Reset Thermal Overload Protector Mounting Plates with Vibration Isolators Inline Check Valve Remote Mountable Intake Filter Assembly 400 Tank Fill Rates 2.5 Gallon Air Tank Fill Rate 0 To 105 PSI 1 Min. 27 Seconds 0 To 145 PSI 2 Min. 20 Seconds 85 To 105 PSI 17 Seconds 110 To 145 PSI 48 Seconds 5 Gallon Air Tank Fill Rate 0 To 105 PSI 2 Min. 55 Seconds 0 To 145 PSI 4 Min. 50 Seconds 85 To 105 PSI 35 Seconds 110 To 145 PSI 1 Min. 40 Seconds,
