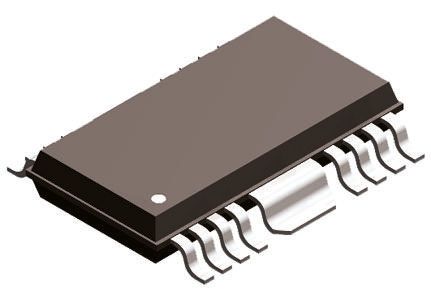

Toshiba . TB6569FG(O,8,EL)

Toshiba . TB6569FG(O,8,EL)

Gallery

Attributes

Brand name, Manufacturer name, Manufacturer, BrandToshiba
jsonUrlData7703728
moq, multiple, tierMinQty11
MPNTB6569FG(O,8,EL)
SKU770-3728
tierMinQty225
tierMinQty3100
tierMinQty4250
tierMinQty5500
tierPrice11.461
tierPrice21.317
tierPrice31.239
tierPrice41.148
tierPrice51.043
Maximum Operating Temperature+85 °C
Length13.5mm
Maximum IGBT Collector Current4.5A
Minimum Operating Supply Voltage10 V
Maximum Collector Emitter Voltage50 V
Package TypeHSOP
Mounting TypeSurface Mount
Minimum Operating Temperature-40 °C
Width6.4mm
Height2.3mm
Output ConfigurationFull Bridge
Maximum Operating Supply Voltage45 V
Pin Count16
Dimensions13.5 x 6.4 x 2.3mm
Motor TypeMotor Type
Typical Switching FrequencyTypical Switching Frequency

Distributor offers

SellerSKUMOQIn stockMultiplePrices
RS Delivers770-3728111 @ $1.46, 25 @ $1.32, 100 @ $1.24, 250 @ $1.15, 500 @ $1.04
