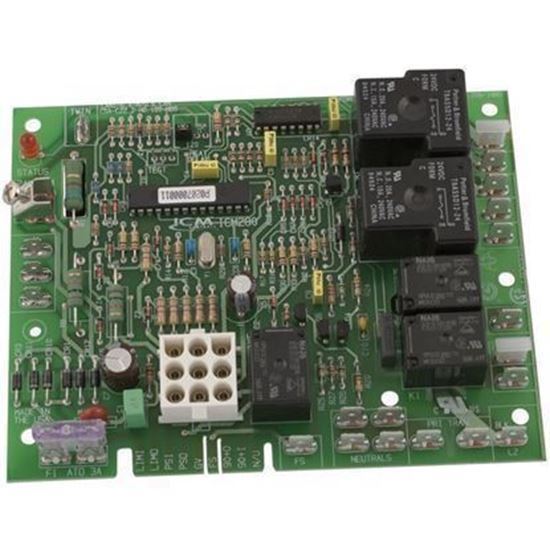

ICM Controls Furnace Circuit Control Board Replacement for Goodman Furnaces - Part# ICM280- Appliance Parts - PartsIPS
Gallery
Attributes
Distributor offers
| Seller | SKU | MOQ | In stock | Multiple | Prices |
|---|---|---|---|---|---|
| PIN-RL-017585 | 1 | 18 | 1 | 1 @ $91.25 |
Related on Amazon
As an Amazon Associate, we earn from qualifying purchases. (paid link) CERTAIN CONTENT THAT APPEARS ON THIS SITE COMES FROM AMAZON. THIS CONTENT IS PROVIDED 'AS IS' AND IS SUBJECT TO CHANGE OR REMOVAL AT ANY TIME.
Icm280 HVAC Furnace Control Board for B18099-06, B18099-08, B18099-10, B18099-13, B18099-13S, 1012-933D , 41F-5, 50T35-730, 50T35-743 (Aftermarket Repair Parts)
Brand: Generic
The furnace board part number is ICM280. This board is a replacement for the following numbers. b18099-06, b18099-08, b18099-10, b18099-13, b18099-13s, 1012-933d , 41f-5, 50t35-730, 50t35-743. Features. - Microprocessor based design for accurate timing. - Suitable for all thermostats with 24 volt AC power . - Diagnostic fault codes (flashing LEDs) for simple troubleshooting . - Twinning compatible with another ICM280 . - Suitable for 80+ and 90+ applications . - 9-pin card slot connection and 9-pin Molexconnector on board . - UL listed. Specifications: - Ignition test: 7.0 seconds . - Ignition activation period: 5 seconds. - Flame build-up period: 2 seconds. - Flame failure response time: 0.8 seconds maximum . - Inducer pre-blow time: 1 sec . - Inducer post-purge time: 25 seconds 80% of the furnace . 29 seconds 90% of the furnace . Igniter preheat time: 15 seconds for the 1st test . 20 seconds for 2nd and 3rd ignition test. Total trials of ignition: 3 times (automatic reset after 1 hour). Hot blower on delay: 30 seconds . Hot blower off delay: 90 sec, 120 sec and 150 sec - Cooler on delay: 30 sec Chiller on delay: 5 seconds . Chiller off delay: 60 seconds . Comes with installation instructions and necessary wiring.
Details
- The furnace board part number is ICM280.
- This board is a replacement for the following numbers. b18099-06, b18099-08, b18099-10, b18099-13, b18099-13s, 1012-933d , 41f-5, 50t35-730, 50t35-743.
- Features: - Microprocessor based design for accurate timing. - Suitable for all thermostats with 24 volt AC power . - Diagnostic fault codes (flashing LEDs) for simple troubleshooting . - Twinning compatible with another ICM280 . - Suitable for 80+ and 90+ applications . - 9-pin card slot connection and 9-pin Molexconnector on board . - UL listed.
- Specifications: - Ignition test: 7.0 seconds . - Ignition activation period: 5 seconds. - Flame build-up period: 2 seconds. - Flame failure response time: 0.8 seconds maximum . - Inducer pre-blow time: 1 sec . - Inducer post-purge time: 25 seconds 80% of the furnace . 29 seconds 90% of the furnace .
- Igniter preheat time: 15 seconds for the 1st test . 20 seconds for 2nd and 3rd ignition test.
- Total trials of ignition: 3 times (automatic reset after 1 hour). Hot blower on delay: 30 seconds . Hot blower off delay: 90 sec, 120 sec and 150 sec - Cooler on delay: 30 sec Chiller on delay: 5 seconds . Chiller off delay: 60 seconds . Comes with installation instructions and necessary wiring.
