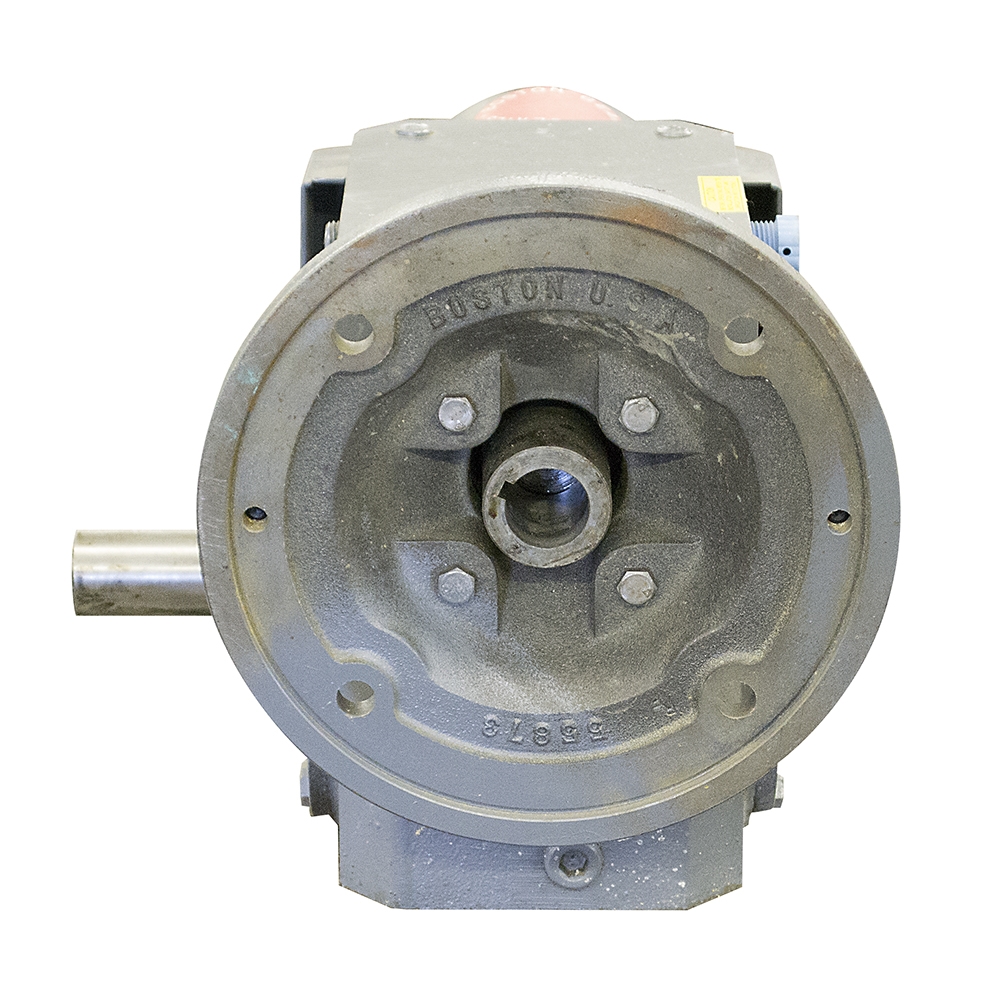

20:1 Right Angle Cast Iron Worm Gear Reducer 4.36 HP 182T Left Output Boston F3320-20-G1 | Cast Iron C-Face Motor Mount Gear Reducers | Gear Reducers & Gearboxes | Power Transmission | www.surpluscenter.com

Boston . F3320-20-G1

Gallery

Attributes

Brand name, Manufacturer name, ManufacturerBoston
DimensionUnitinch
height3.25
height_AttribOutput Centerline Height
moq, multiple, tierMinQty11
MPNF3320-20-G1
qtyInStock0
SKU13-F33220G1
snippet20:1 Right Angle Cast Iron Worm Gear Reducer 4.36 HP 182T Left Output Boston F3320-20-G1, Cast Iron C-Face Motor Mount Gear Reducers, 20:1 GEARBoston,F3320-20-G1,
tierPrice1299.95
Ratio20:1
Input Power4.36 HP max.
Input Speed1750 RPM max.
Output Speed87.5 RPM max.
Output Torque2600 in-lb. max.
Output Centerline Height3-1/4"
Motor Mount182T
Input Bore1-1/8" x 2-3/8" w/ 1/4" keyway
Output TypeLeft Shaft
Output Shafts1-3/8" x 3-1/4" w/ 5/16" keyway
MountFour top and bottom on 7-1/2" x 4-1/2" centers, tapped 7/16"-14
Size12" x 9-1/2" x 6"
Shpg85 lbs.

Distributor offers

SellerSKUMOQIn stockMultiplePrices
surpluscenter.com13-F33220G1111 @ $299.95
