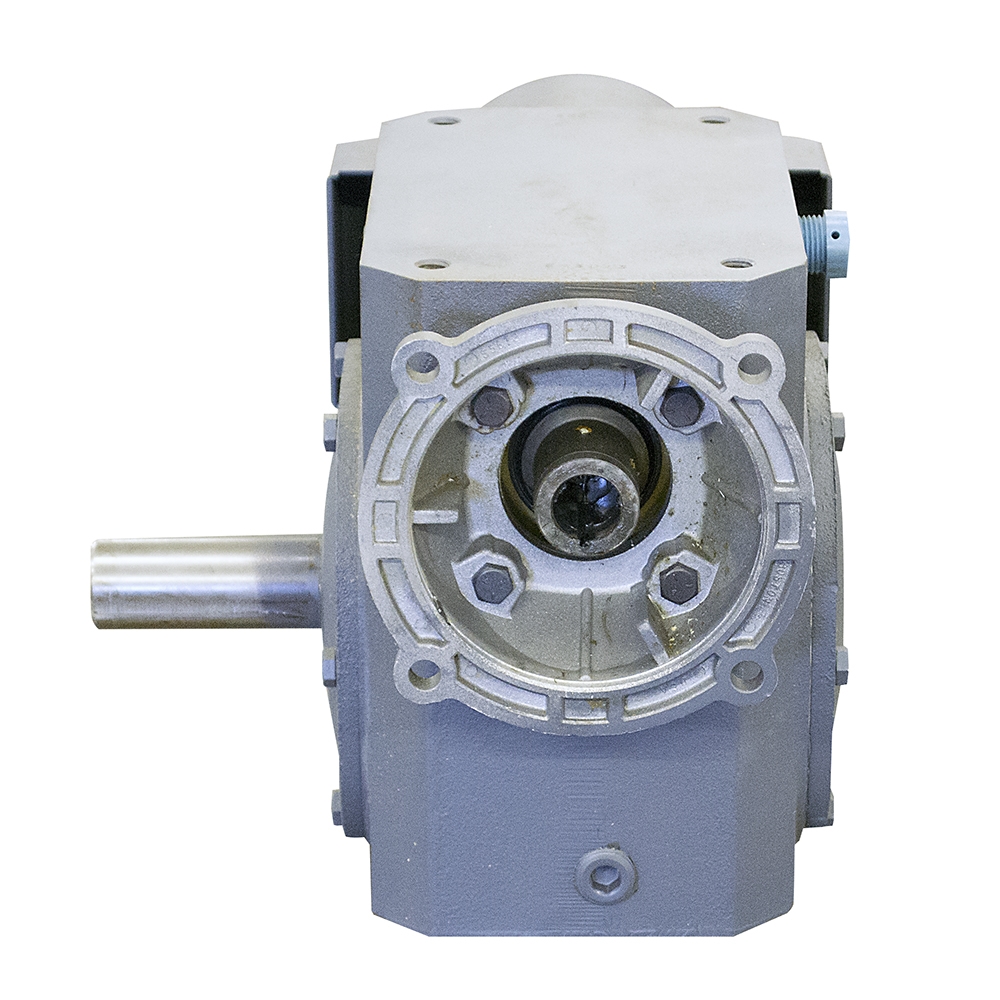

20:1 Right Angle Cast Iron Worm Gear Reducer 4.36 HP 145TC Left Output Boston F3320-20A-G1 | Boston | Brands | www.surpluscenter.com

Boston Gear . F3320-20A-G1

Gallery

Attributes

Brand name, Manufacturer name, ManufacturerBoston Gear
DimensionUnitinch
Extra Product Name20:1 Right Angle Cast Iron Worm Gear Reducer 4.36 HP 145TC Left Output Boston F3320-20A-G1 | Boston | Brands | www.surpluscenter.com
height3.25
height_AttribOutput Centerline Height
moq, multiple, qtyInStock, tierMinQty11
MPNF3320-20A-G1
SKU13-F33220AG1
snippet20:1 Right Angle Cast Iron Worm Gear Reducer 4.36 HP 145TC Left Output Boston F3320-20A-G1, Boston, 20:1 GEAR REDUCER 4.36 HP Old unused inventory,Boston Gear,F3320-20A-G1,
tierPrice1299.95
Ratio20:1
Input Power4.36 HP max.
Input Speed1750 RPM max.
Output Speed87.5 RPM max.
Output Torque2600 in-lb. max.
Output Centerline Height3-1/4"
Motor Mount145TC
Input Bore7/8" x 1-5/8" w/ 3/16" keyway
Output TypeLeft Shaft
Output Shaft1-3/8" x 3-1/4" w/ 5/16" keyway
MountFour top and bottom on 7-1/2" x 4" centers, tapped 7/16"-14
Size12" x 10" x 6"
Shpg75 lbs.

Distributor offers

SellerSKUMOQIn stockMultiplePrices
surpluscenter.com13-F33220AG11111 @ $299.95
