EVQ-P6UB55 Panasonic Electronic Components | Switches | DigiKey

Panasonic Electronic Components . EVQ-P6UB55

Attributes

Brand name, Manufacturer name, Manufacturer, Mfr, Label, Man, Publisher, StudioPanasonic Electronic Components
DimensionUnitmm
Extra Product NameEVQ-P6UB55 Panasonic Electronic Components | Switches | DigiKey
atoms, moq, multiple1
extraShipping, qtyInStock0
height0.58
height_AttribActuator Height off PCB, Vertical
MPN, Part Number, PartNumberEVQ-P6UB55
SKU593491

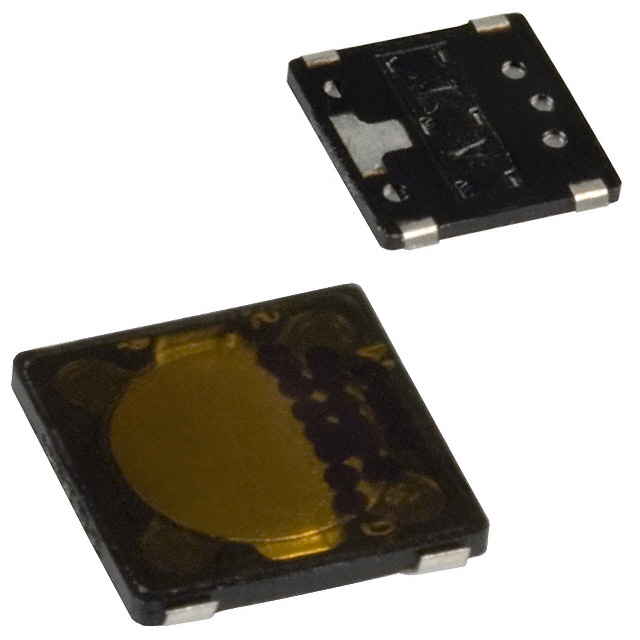

snippetTactile Switch SPST-NO Top Actuated Surface Mount
Product Group, ProductGroup, ProductTypeNameBISS
CategorySwitches
SeriesEVQP6
PackageTape & Reel (TR)
Product StatusObsolete
CircuitSPST-NO
Switch FunctionOff-Mom
Contact Rating @ Voltage0.02A @ 15VDC
Actuator TypeStandard
Mounting TypeSurface Mount
Actuator Height off PCB, Vertical0.58mm
Actuator Length, Right Angle, Illumination Type, Color, Illumination Voltage (Nominal), Actuator Material-
Actuator OrientationTop Actuated
Termination StyleJ Lead
Outline4.10mm x 4.10mm
IlluminationNon-Illuminated
Operating Force240gf
Ingress ProtectionDust Proof
FeaturesPush Plate
Operating Temperature-20?C ~ 70?C
Switch Travel0.25mm
Mechanical Life500,000 Cycles
Base Product NumberEVQ-P6
AsinB00R3QERK8
BrandPANASONIC ELECTRONIC COMPONENTS
Case, NumberOfItems, PackageQuantity100
CatIndustrial & Scientific
CatId16310091
CatTree16310091 16310161 306506011 306528011
Feature<b>Minimum Quantity:</b> 1 <b>Packaging:</b> Cut Tape (CT) <b>Series:</b> EVQP6 <b>Circuit:</b> SPST-NO <b>Switch Function:</b> Off-Mom <b>Contact Rating @ Voltage:</b> 0.02A @ 15VDC <b>Actuator Type:</b> Standard <b>Mounting Type:</b> Surface Mount <b>Actuator Height off PCB, from Pins:</b> 0.58mm <b>Actuator Orientation:</b> Top Actuated <b>Termination Style:</b> SMD (SMT) Tab <b>Outline:</b> 4.10mm x 4.10mm <b>Illumination:</b> Non-Illuminated
Size100 pack
TitleSWITCH TACTILE SPST-NO 0.02A 15V (100 pieces)

Distributor offers

SellerSKUMOQIn stockMultiplePrices
Digi-Key59349111
Digi-Key59362711
Digi-Key180981111
