Concealed Hinge, Zamac/Steel Material, Satin Chrome Finish, With Holes, 4 Holes per Leaf, No Ligature Resistant, 180 Degrees Range of Motion, Orientation Non Handed, 4 5/8 in Door Leaf Height, 4 5/8 in Frame Leaf Height, 1 1/8 in Door Leaf Width, 1 1/8 in Frame Leaf Width, 1 3/4 in Required Door Thickness, Rounded Corners, Included Hardware, Full Mortise Mounting, Steel Pin Material, Nonremovable Pin Type, ANSI/BHMA 156.1-2006 Standards
Gallery
Attributes
Distributor offers
| Seller | SKU | MOQ | In stock | Multiple | Prices |
|---|---|---|---|---|---|
| Zoro | G2939571 | 1 | 96 | 1 | 1 @ $41.85 |
 Zoro | G1534337 | 1 | 1 | 1 @ $31.83 | |
| AD7DGU | 1 | 1 | 1 @ $99.14 | ||
| 491502 | 1 | 1 | 1 @ $78.19 | ||
| amerisponse.com | 221626 | 1 | -2 | 1 | 1 @ $37.48 |
| 218US26D | 1 | -2 | 1 | ||
 simsupply.com | CU-34444E4E37 | 1 | 1 | 1 @ $84.14 | |
 simsupply.com | ZO-G2939571 | 1 | 47 | 1 | 1 @ $55.50 |
 toolschest.com | SODH009 | 1 | -2 | 1 | 1 @ $49.78 |
Related on Amazon
As an Amazon Associate, we earn from qualifying purchases. (paid link) CERTAIN CONTENT THAT APPEARS ON THIS SITE COMES FROM AMAZON. THIS CONTENT IS PROVIDED 'AS IS' AND IS SUBJECT TO CHANGE OR REMOVAL AT ANY TIME.
SOSS Invisible Hinge Model 218 for 1-3/4" Thick Material, 20 Minute Fire Rated, Zinc, Satin Chrome Exterior Finish, Model Number 218US26D
Brand: SOSS
Details
- For use with material 1-3/4" to 2" thick
- Open 180 degrees and swings in one direction
- 20 minute UL fire rating
- Riveted steel hinge pin is non-removable
- Fully mortised so the hinge cannot be seen from either side when the hinge is closed
- Moving pivot point eliminates any external pinch point
- No adjustment needed once installed
- Nylon hinge links provide smooth hinge operation
Listing
| Binding | Misc. |
|---|---|
| Product group | BISS |
| Product type | MECHANICAL_COMPONENTS |
| Model | 218US26D |
| Part number | 218US26D |
| Items per pack | 1 |
| Label | SOSS |
| Manufacturer | SOSS |
Catalog
| Feature | Soss invisible hinges for wood or metal applications |
|---|---|
| Category | Tools & Home Improvement |
| MPN | 218US26D |
| UPC | 27769218255 |
| EAN | 5272003689239 |
| Product group | BISS |
| Product type | MECHANICAL_COMPONENTS |
| Manufacturer | SOSS |

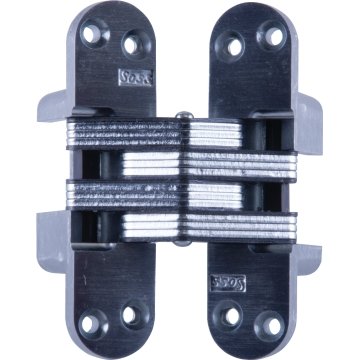

1-1/8"W x 4-5/8"H Satin Chrome Concealed Hinge
Brand: SOSS
Hinges vary by degrees of range of motion and holes per leaf. Take a look at the features for Soss Concealed Hinge. Material:Zamac/Steel, Material:Zamac/Steel, Finish:Satin Chrome.
Details
- Frame Leaf Height: 4-5/8"; Finish: Satin Chrome; Corners: Round

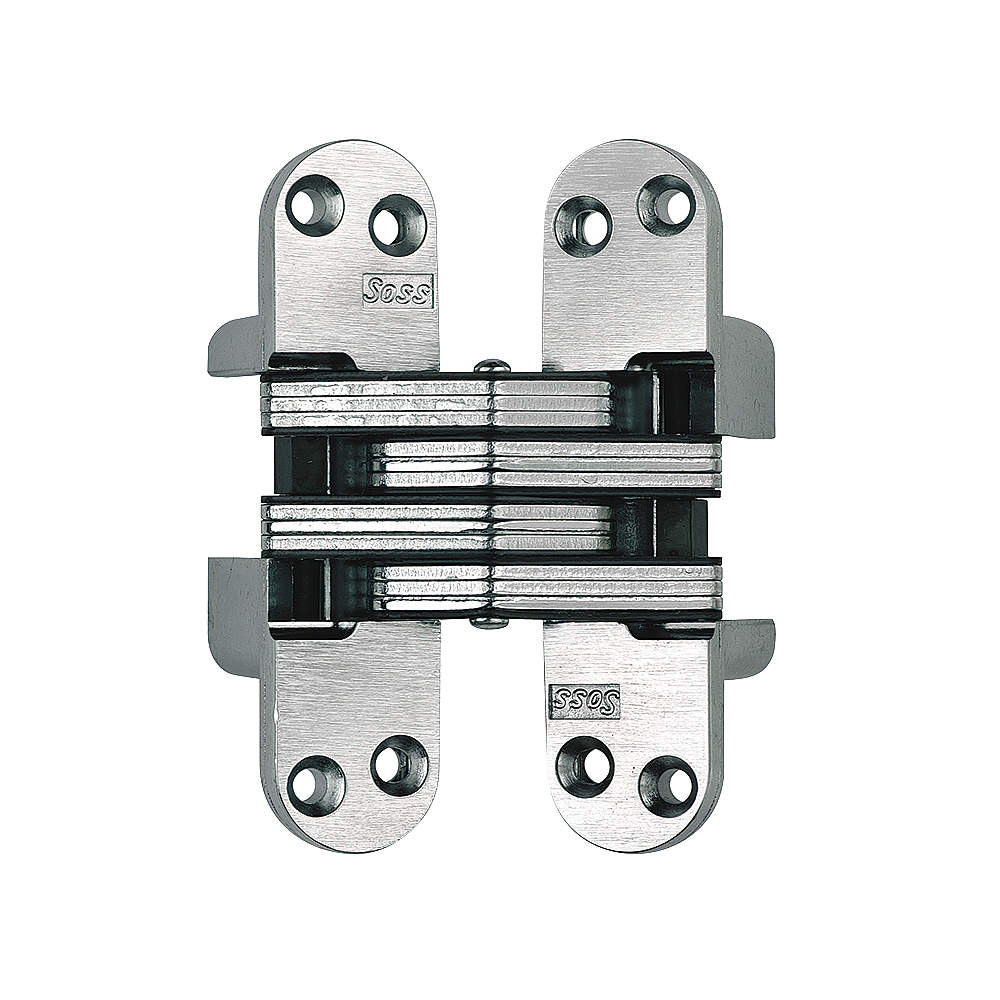

SOSS Mortise Mount Invisible Hinge with 8 Holes, Zinc, Satin Chrome Finish, 4-5/8 Leaf Height, 1-1/8 Leaf Width, 1-41/64 Leaf Thickness, #10 x 1-1/2 Screw Size, Model: 218US26D, Tools & Outdoor Store
Brand: SOSS
Soss invisible hinge model #218 is for use in wood or metal applications. This full size door style hinge will provide superior apperance and durability. Our Hinges are found in many applications where flush fit, compact size and smooth operation are necessary features. Soss invisible hinges open a full 180 degree and are a single action hinge. Wood Screw Size: #10 x 1-1/2. Soft Wood Pilot Hole: No. 43. Hard Wood Pilot Hole: No. 31. Machine Screw Sizes: #10-24 x 1.
Details
- Soss invisible hinges for wood or metal applications
- Wood and machine screw
- With no. 53 soft wood and no. 57 hard wood pilot hole
- Zinc body with steel pins
- Satin chrome finish
Listing
| Binding | Misc. |
|---|---|
| Product group | Home Improvement |
| Product type | HARDWARE_HINGE |
| Model | 218US26D |
| Part number | RNN-RPN-33943623 |
| Label | SOSS |
| Manufacturer | SOSS |
