Icy Dock . MB996SP-6SB

ICY DOCK MB-996SP-6SB

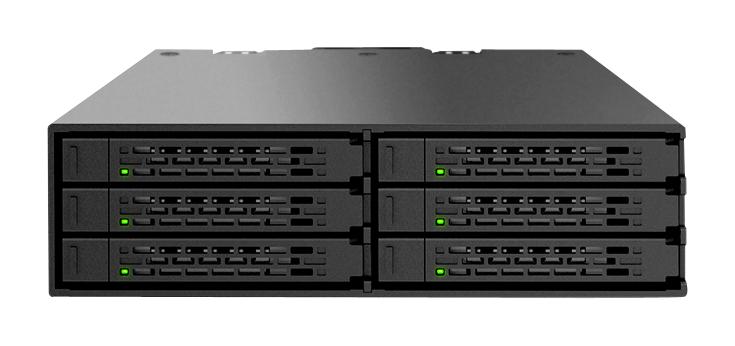

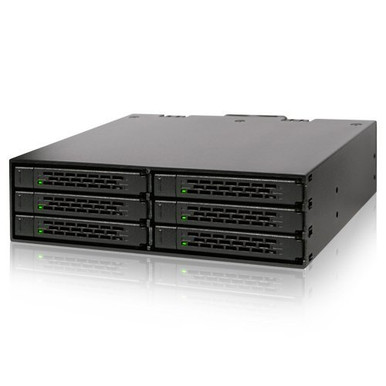

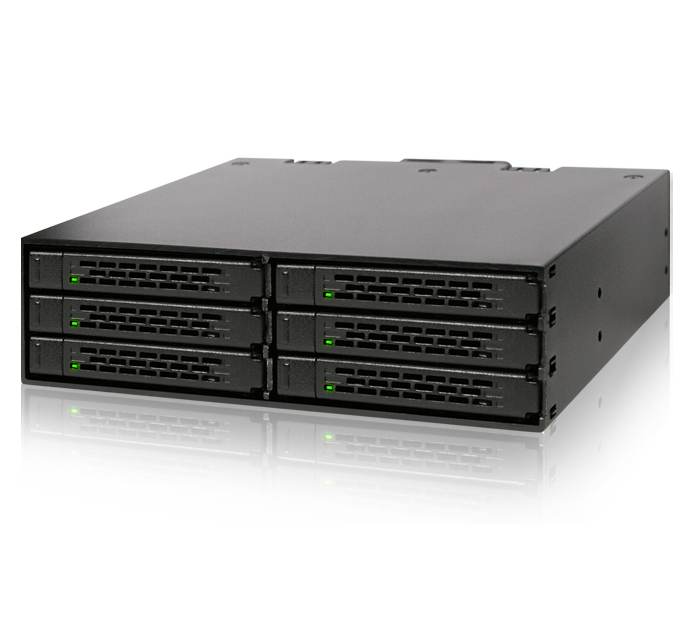

The 5.25” bay has been a long standard in computer history. It started from the 90s legacy industrial PC cases all the way to today’s Micro ATX cases. The 5.25” bay has been widely used for optical drives such as DVD and Blue-ray, or with even a single 3.5” hard drive with mobile rack. However, it is almost impossible to use a single 5.25” drive bay to create complex RAID storage until the MB996SP-6SB Rugged Full Metal 6 x 2.5” SATA Hard Drive & SSD Backplane. This is a device commercially designed for: Medical & Military systems, Media servers, IPCs, HTPC, and All-In-One computers, approved & used by Tier 1 companies.

Model Number: MB996SP-6SB Color: Matt Black Host Interface: 6 x 7 pin SATA Drive Fit: 6 x 2.5" SATA I / II / III SSD or HDD (9.5mm thickness) Drive Bay: Single 5.25" half height device bay Transfer Rate: Up to 6 Gb/sec...

Icy Dock 5.25" Bay SATA HD SSD RAID

Brand Name: Icy Dock<br /> Product Model: MB996SP-6SB<br /> Product Name: MB996SP-6SB 6 in 1 SATA Hot Swap Backplane RAID Cage<br /> Marketing Information: <br /> The 5.25" device bay has been a long standard in computer history. It started from the 90s legacy industrial PC cases all the way to today&#039;s Micro ATX cases. The 5.25" bay has been widely used for optical drives such as DVD and Blue-ray, or with even a single 3.5" hard drive with mobile rack. However, it is almost impossible to use a single 5.25" bay to create complex RAID storage until the MB996SP-6SB Full Metal 6 x 2.5" SATA Hard Drive & SSD Backplane.<br /> <br /> <br /> Product Type: DAS Array<br /> Storage<br /> Number of Hard Drives Supported: 6<br /> Number of Hard Drives Installed: No<br /> Number of Solid State Drive Supported: 6<br /> Number of Solid State Drive Installed: No<br /> Features: Active Power Technology (APT)<br /> Features: Vibration Resistant<br /> Controllers<br /> RAID Levels: 0<br /> RAID Levels: 1<br /> RAID Levels: 5<br /> RAID Levels: JBOD<br /> I/O Expansions<br /> Number of Total Expansion Bays: 6<br /> Number of 5.25" Bays: No<br /> Number of 3.5" Bays: No<br /> Number of 2.5" Bays: 6<br /> Number of 2.5"/3.5" Bays: No<br /> Interfaces/Ports<br /> Drive Interface: Serial ATA/600<br /> Host Interface: SATA/600<br /> Physical Characteristics<br /> Form Factor: Internal<br /> Height: 1.6"<br /> Width: 5.8"<br /> Depth: 5.8"<br /> Weight (Approximate): 1.77 lb<br /> Miscellaneous<br /> Package Contents: <br /> MB996SP-6SB 6 in 1 SATA Hot Swap Backplane RAID Cage<br /> 2 x Power Adapter

Description: Features: Fits 9.5mm 6 x 7mm 2.5" SATA hard drives or SSDs in a single 5.25" bay for high performance RAID applications. Full Metal Construction with aluminum body, to protect your drives. (AVT anti-vibration technology) - Creates a safe environment for hard drives or SSDs. Active Power Technology (APT) - Individual LED and cooling fan only powers up if there is a drive installed in the bay. 3-Mode fan speed control - Adjust cooling settings or ( high, low, off) for your specific needs. Eagle-hook locking system keeps drives secure in the box. Switch between 4 and 15-pin power connection with the included adapter. Removable tray system for easy maintenance. Supports SATA 6 Gbps and hot swap.
