Icy Dock . MB153SP-B

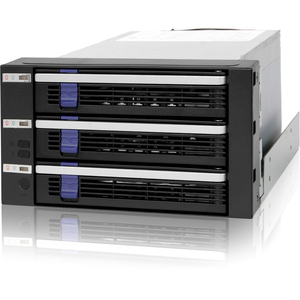

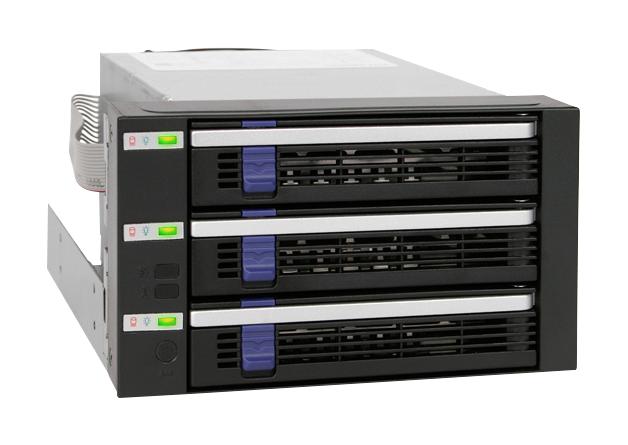

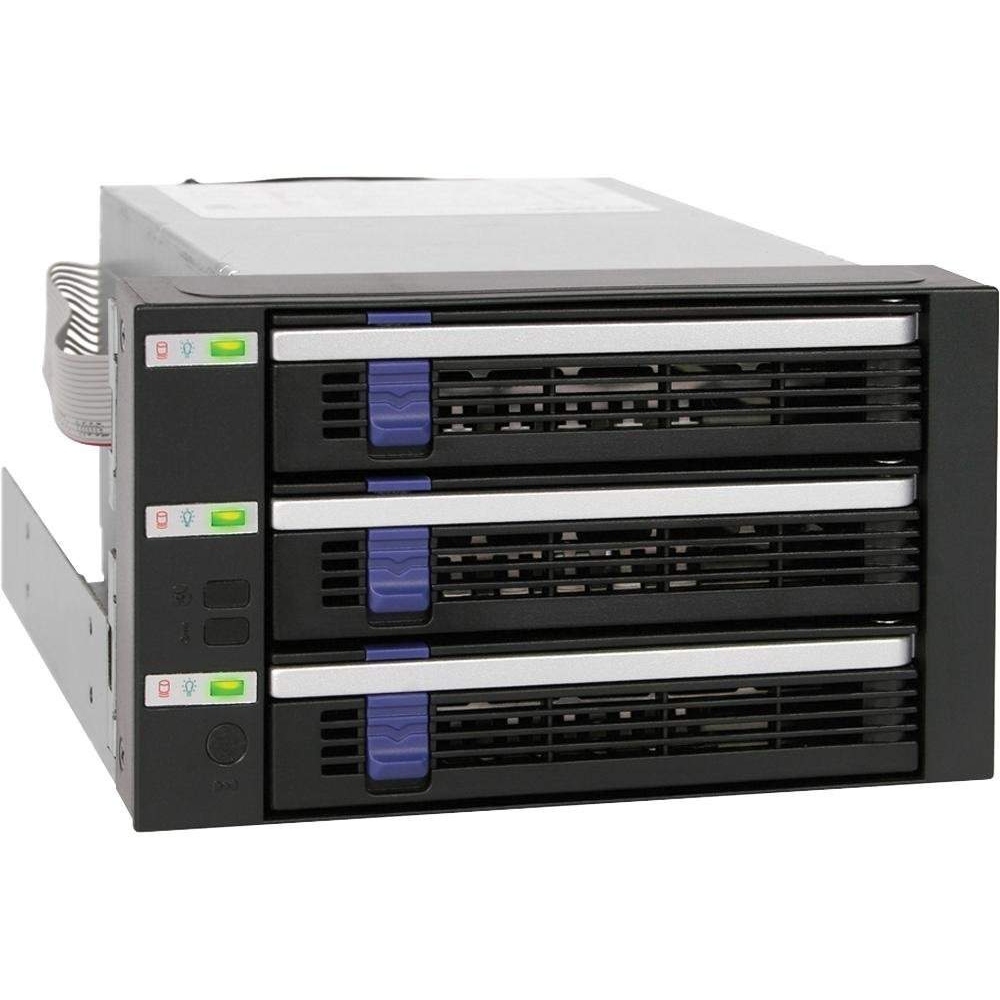

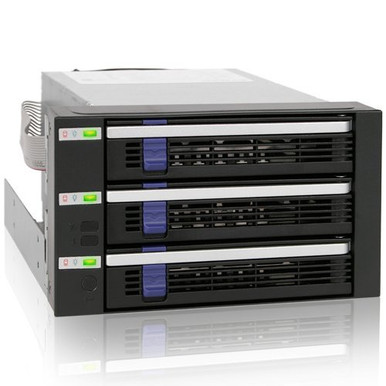

Brand Name: Icy Dock<br /> Product Model: MB153SP-B<br /> Product Name: MB153SP-B 3 in 2 SATA Internal Backplane Raid Cage Module<br /> Marketing Information: <br /> Introducing the MB153SP-B, a 3-in-2 SATA internal RAID backplane for 3.5" SATA hard drives. This is a lite version of the MB45X series by removing the monitoring features and reducing the overall cost, while keeping the same 3 year warranty and the core tray system for hot swapping and maintenance are kept for the best reliability in the market.<br /> <br /> Slimmed Down Design<br /> <br /> The MB153SP-B has been redesigned to be a lighter module, while maintaining the same level of quality, build, and service you&#039;d expect from an Icy Dock product. While the design has gone through some changes, the space saving design is still established. The backplane module allows up to 3 x 3.5" SATA III hard drives, while only consuming two 5.25" bays. The module has also been redesigned for the type of power connector accepted. 15 pin SATA power is used to provide better accessibility for various host systems.<br /> <br /> <br /> Product Type: DAS Array<br /> Storage<br /> Number of Hard Drives Supported: 3<br /> Number of Hard Drives Installed: No<br /> Features: Active Power Technology (APT)<br /> I/O Expansions<br /> Number of Total Expansion Bays: 3<br /> Number of 5.25" Bays: No<br /> Number of 3.5" Bays: 3<br /> Number of 2.5" Bays: No<br /> Number of 2.5"/3.5" Bays: No<br /> Interfaces/Ports<br /> Drive Interface: Serial ATA/600<br /> Host Interface: SATA/600<br /> Physical Characteristics<br /> Form Factor: Internal<br /> Height: 3.4"<br /> Width: 5.8"<br /> Depth: 7.9"<br /> Weight (Approximate): 2.01 lb<br /> Miscellaneous<br /> Green Compliant: Yes<br /> Green Compliance Certificate/Authority: RoHS<br /> Warranty<br /> Limited Warranty: 3 Year

<p><b>Specifications</b></p><ul><li><strong>Mfr Part Number: </strong>MB153SP-B</li><li><strong>Features:</strong><ul><li>3 in 2 RAID backplane module</li><li>Fits three 3.5" SATA I/ II/ III (SATA 6Gbps) hard drives in two external 5.25"Â bay & fully supports SATA Hot-Swap function</li><li>80mm cooling fan with full metal body for excellent heat dissipation for the most intense applications</li><li>Compact and space saving to fit multiple drives</li><li>Interchangeable tray design with DataCage Basic MB876, DataCage Classic MB453/ 454/ 455, ICYBento MB559 & ICYCube MB561 series</li><li>Enhanced Direct Air Flow Design-Shuts off vents while adding larger ventilation on the backplane PCB</li><li>Uses SATA 15 power ports for best compatibility with the newest power supplies</li><li>LED hard drive status notification</li><li>Active Power Technology (APT)-individual led & cooling fan only powers up if there is a drive installed in the bay</li><li>Removable EZ-Tray design for internal drive security, exchangeability, expandability and maintenance capabilities</li><li>Replaceable rear cooling fan for easy maintenance or aftermarket replacement with 2 and 3 pin power ports available</li><li>ICY DOCK 3 year warranty equivalent to hard drive manufacturer warranty to ensure maximum reliability and long life</li></ul></li><li><strong>Structure:</strong> Metal body w/ partial plastic</li><li><strong>Drive Fit:</strong>Â 3x 3.5" SATA 1.5 / 3 / 6 Gbit/s Hard Drives</li><li><strong>Drive Bay: </strong>2x External Half Height 5.25" Bay</li><li><strong>Host Interface:</strong>Â 3x 7pin SATA Port
