P2B-SCEZ-200-SH | Dodge

Dodge . P2B-SCEZ-200-SH

Gallery

Attributes

Brand name, Manufacturer name, ManufacturerDodge
CategoryL1Bearings
CategoryL2Mounted Bearings
CategoryL3Mounted Ball Bearings
CategoryL4Pillow Block Bearings
DimensionUnitmm
Extra Product NameP2B-SCEZ-200-SH | Dodge
diameter, width50.8
height57.15
height_AttribShaft centerline height
length1.94
length_AttribBore length
moq, multiple, tierMinQty11
MPNP2B-SCEZ-200-SH
qtyInStock0
SKU127261

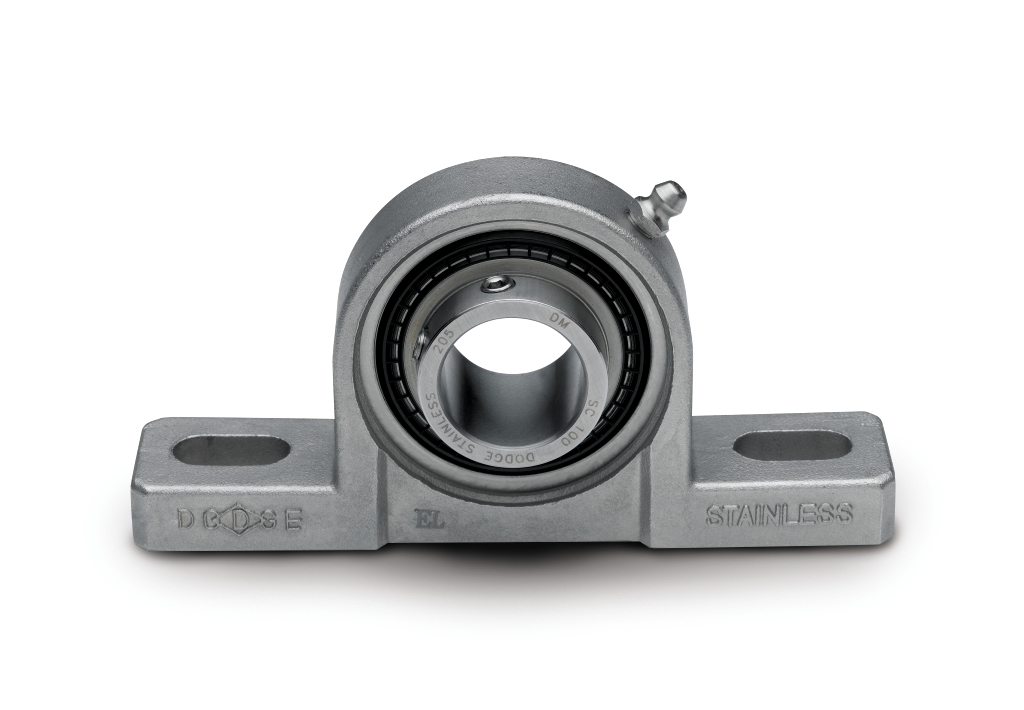

snippet2" bore Pillow Block 2-Bolt Ball Bearing with Set Screw locking used in Washdown applications
tierPrice1173.24
width_AttribShaft diameter
DutyStandard Duty
Relubrication, Greasable, Suitable for washdownYes
Bolt centerline range5.76 inch - 6.68 inch
Bore length1.9400 in, 49.276 mm
Insert typeBall Bearing
Rolling elementStandard duty ball
LockingSet screw
Expansion, High temp, Standoff housing, Suitable for high temperatureNo
Housing material, Housing optionStainless steel
ApplicationWashdown
Insert optionBearing steel
Shaft centerline height2.25 in
Seal optionQuadGuard seals with flingers
Bore, I D2 in
TypePillow block 2-Bolt
Housing constructionSolid
Ball bearing series210 series
Shaft diameter2.0000 in
Shaft attachmentSetscrew
Expansion capabilityNon-expansion (fixed)
Bolt to bolt min4.7600 in, 120.904 mm
Bolt to bolt max6.6800 in, 169.672 mm
Static load capacity5213 lbf, 23188.579 N
Bearing typeBall, ball
Bolt Diameter0.6250 in
Take-up frame sizeLD-30, TS-300
Housing typeTwo-bolt pillow block
Lubrication typeGrease
Max Speed3000 rpm
Sensor readyAdapter required
Base to center height2.2500 in, 57.15 mm
Insert materialSteel

Distributor offers

SellerSKUMOQIn stockMultiplePrices
MRO Supply127261111 @ $173.24
motionindustries.com027242571Not in Stock, Available to Order11 @ $237.24
Applied Industrial10146548511
apexindustrialautomation.comP2B-SCEZ-200-SH111 @ $175.58
