P2B-SCEZ-111-PCR | Dodge

Dodge . P2B-SCEZ-111-PCR

Gallery

Attributes

Brand name, Manufacturer name, ManufacturerDodge
CategoryL1Bearings
CategoryL2Mounted Bearings
CategoryL3Mounted Ball Bearings
CategoryL4Pillow Block Bearings
DimensionUnitmm
Extra Product NameP2B-SCEZ-111-PCR | Dodge
diameter, width42.8625
height2.13
height_AttribBase to center height
length2.54
length_AttribBore length
moq, multiple, tierMinQty11
MPNP2B-SCEZ-111-PCR
qtyInStock0
SKU127077

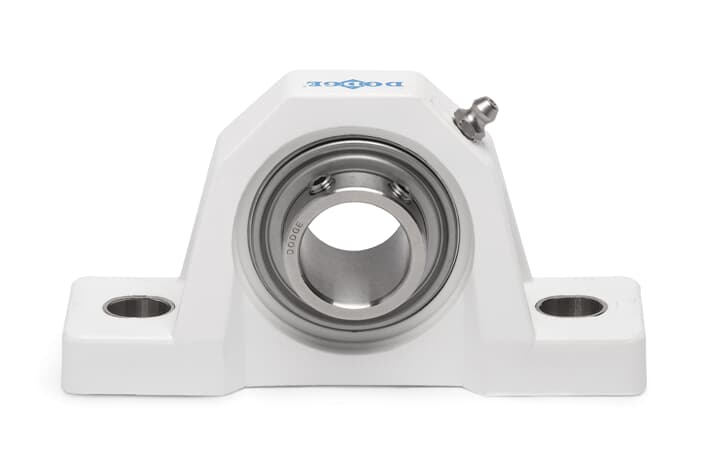

snippet1-11/16" bore Pillow Block 2-Bolt Ball Bearing with Set Screw locking used in Washdown applications
tierPrice1194.05
width_AttribShaft diameter
DutyStandard Duty
Relubrication, Greasable, Suitable for washdownYes
Bore length2.5400 in, 64.516 mm
Insert typeBall Bearing
Rolling elementStandard duty ball
LockingSet screw
Expansion, High temp, Standoff housing, Suitable for high temperatureNo
Housing material, Housing optionPolymer
ApplicationWashdown
Insert optionCorrosion Resistant
Seal optionQuadGuard seals with flingers
Bore1 11/16 in
TypePillow block 2-Bolt
Housing constructionSolid
Shaft diameter1.6875 in
Shaft attachmentSetscrew
Expansion capabilityNon-expansion (fixed)
Bolt to bolt min5.4200 in, 137.668 mm
Bolt to bolt max5.9600 in, 151.384 mm
Bearing typeBall, ball
Bolt Diameter0.5000 in
Take-up frame sizeLD-20,TS-250
Housing typeTwo-bolt pillow block
Lubrication typeGrease
Ball bearing series209 series
Sensor readyAdapter required
Base to center height2.1300 in, 54.102 mm
Insert materialPlated steel

Distributor offers

SellerSKUMOQIn stockMultiplePrices
MRO Supply127077111 @ $194.05
Lily BearingP2B-SCEZ-111-PCR1-211 @ $174.84
apexindustrialautomation.comP2B-SCEZ-111-PCR111 @ $196.68
