P2B-SCEZ-010L-P | Dodge

Dodge . P2B-SCEZ-010L-P

Gallery

Attributes

Brand name, Manufacturer name, ManufacturerDodge
CategoryL1Bearings
CategoryL2Mounted Bearings
CategoryL3Mounted Ball Bearings
CategoryL4Pillow Block Bearings
DimensionUnitmm
Extra Product NameP2B-SCEZ-010L-P | Dodge
diameter, width15.875
height1.31
height_AttribBase to center height
length1.23
length_AttribBore length
moq, multiple, tierMinQty11
MPNP2B-SCEZ-010L-P
qtyInStock0
SKU132921

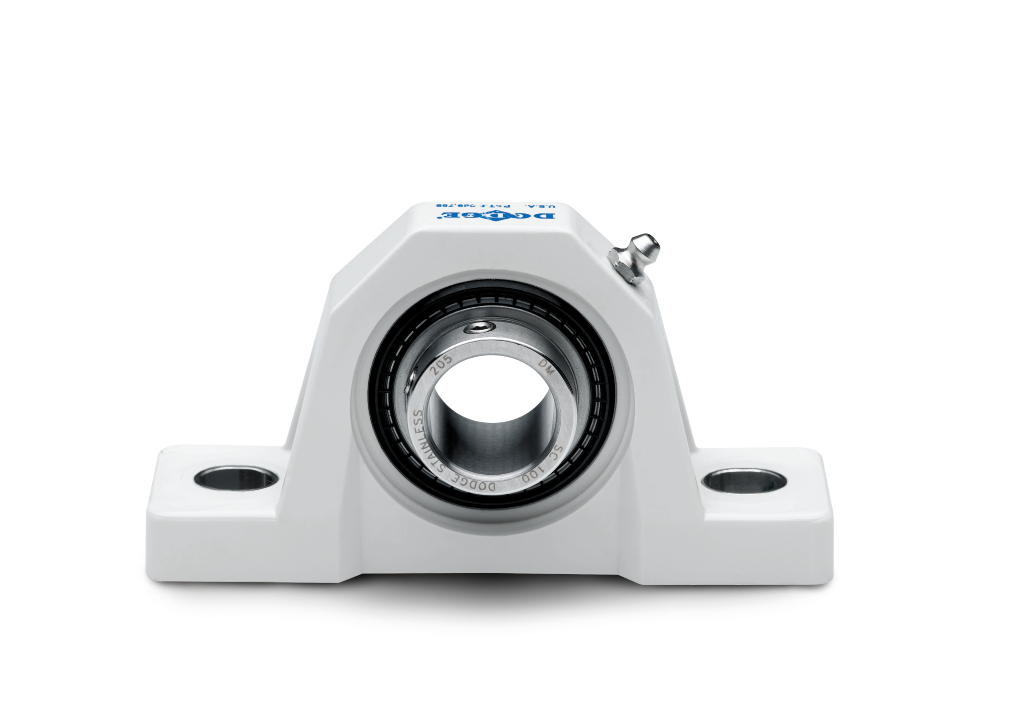

snippet5/8" bore Pillow Block 2-Bolt Ball Bearing with Set Screw locking used in Dirty & Dusty Environment applications
tierPrice173.55
width_AttribShaft diameter
DutyStandard Duty
Relubrication, Greasable, Suitable for washdownYes
Bore length1.2300 in, 31.242 mm
Insert typeBall Bearing
Rolling elementStandard duty ball
LockingSet screw
Expansion, High temp, Standoff housing, Suitable for high temperatureNo
Housing material, Housing optionPolymer
ApplicationDirty & dusty environment
Insert optionBearing steel
Seal optionQuadGuard seals with flingers
Bore5/8 in
TypePillow block 2-Bolt
Housing constructionSolid
Shaft diameter0.6250 in
Shaft attachmentSetscrew
Expansion capabilityNon-expansion (fixed)
Bolt to bolt min3.6600 in, 92.964 mm
Bolt to bolt max4.1900 in, 106.426 mm
Bearing typeBall, ball
Bolt Diameter0.3750 in
Take-up frame sizeLD-10, TS-100
Housing typeTwo-bolt pillow block
Lubrication typeGrease
Ball bearing series204 series
Sensor readyAdapter required
Base to center height1.3100 in, 33.274 mm
Insert materialSteel

Distributor offers

SellerSKUMOQIn stockMultiplePrices
MRO Supply132921111 @ $73.55
Applied Industrial10219576111
apexindustrialautomation.comP2B-SCEZ-010L-P111 @ $74.54
