P2B-SC-100-HT | Dodge

Dodge . P2B-SC-100-HT

Gallery

Attributes

Brand name, Manufacturer name, ManufacturerDodge
CategoryL1Bearings
CategoryL2Mounted Bearings
CategoryL3Mounted Ball Bearings
CategoryL4Pillow Block Bearings
DimensionUnitmm
Extra Product NameP2B-SC-100-HT | Dodge
diameter, width25.4
height1.44
height_AttribBase to center height
length1.34
length_AttribBore length
moq, multiple, tierMinQty11
MPNP2B-SC-100-HT
qtyInStock0
SKU123370

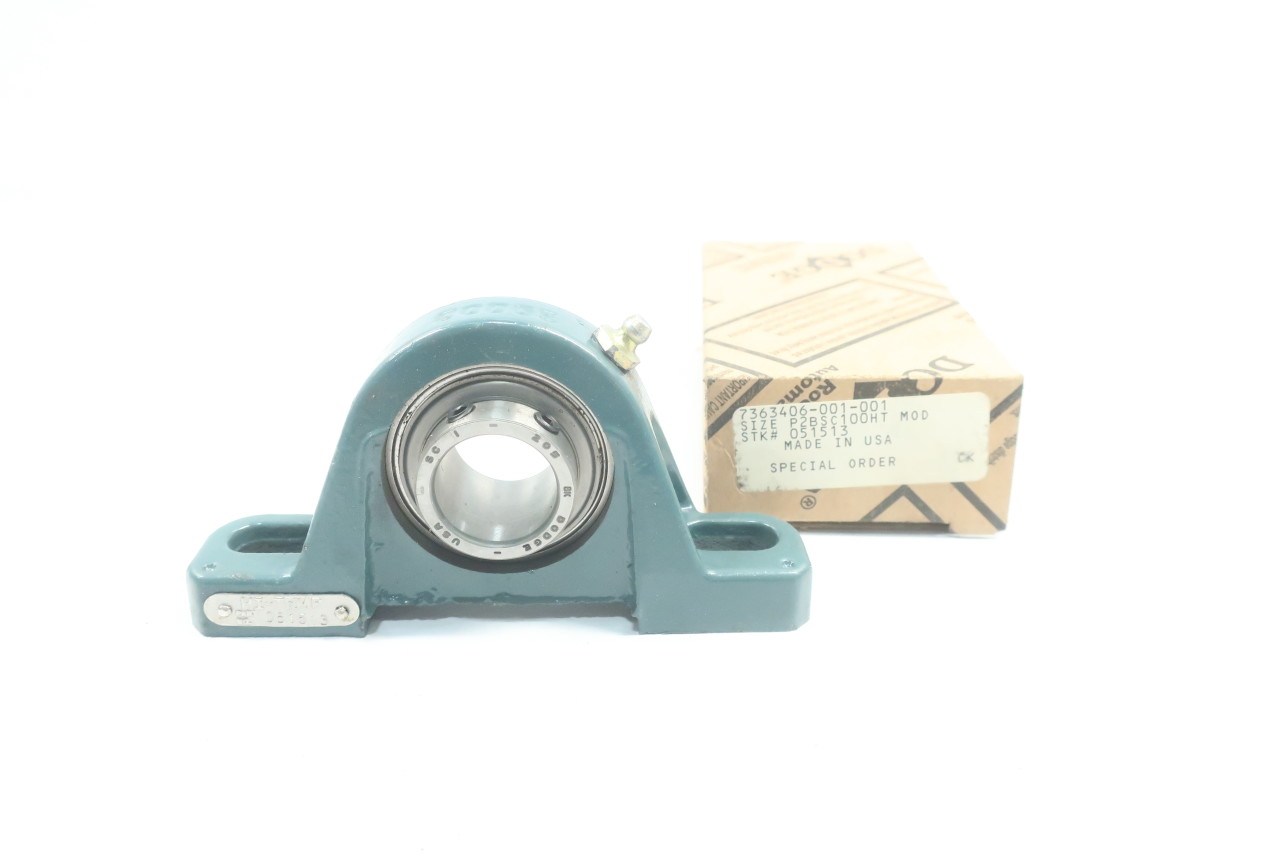

snippet1" bore Pillow Block 2-Bolt Ball Bearing with Set Screw locking used in General Purpose applications
tierPrice1152.04
width_AttribShaft diameter
DutyStandard Duty
Relubrication, High temp, Greasable, Suitable for high temperatureYes
FinishPowder coated
Bore length1.3400 in, 34.036 mm
Insert typeBall Bearing
Rolling elementStandard duty ball
Material, Insert materialSteel
LockingSet screw
Housing option, Housing materialCast iron
Expansion, Suitable for washdown, Standoff housingNo
ApplicationGeneral Purpose
Max RPM7500 rpm
Insert optionBearing steel
SealShield
Seal optionDualGuard seals with flingers
Bore, I D1 in
TypePillow block 2-Bolt
Housing constructionSolid
Shaft diameter1.0000 in
Shaft attachmentSetscrew
Expansion capabilityNon-expansion (fixed)
Bolt to bolt min3.6900 in, 93.726 mm
Bolt to bolt max4.5000 in, 114.3 mm
Bearing typeBall, ball
Bolt Diameter0.3750 in
Take-up frame sizeLD-10, TS-100
Housing typeTwo-bolt pillow block
Lubrication typeGrease
Ball bearing series205 series
Sensor readyAdapter required
Base to center height1.4400 in, 36.576 mm
