P2B-DLU-103 | Dodge

Dodge . P2B-DLU-103

Gallery

Attributes

Brand name, Manufacturer name, ManufacturerDodge
CategoryL1Bearings
CategoryL2Mounted Bearings
CategoryL3Mounted Ball Bearings
CategoryL4Pillow Block Bearings
DimensionUnitmm
Extra Product NameP2B-DLU-103 | Dodge
diameter, width30.162499999999998
height42.8625
height_AttribShaft centerline height
length1.52
length_AttribBore length
moq, multiple, tierMinQty11
MPNP2B-DLU-103
qtyInStock0
SKU134280

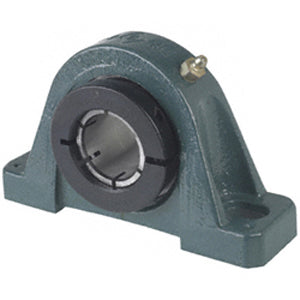

snippet1-3/16" bore Pillow Block 2-Bolt Ball Bearing with Concentric Collar locking used in General Purpose applications
tierPrice1108.71
width_AttribShaft diameter
LockingConcentric collar
ApplicationGeneral Purpose
TypePillow block 2-Bolt
Relubrication, GreasableYes
FinishPowder coated
Bore length1.5200 in, 38.608 mm
Shaft centerline height1 11/16 inch
Material, Insert materialSteel
Expansion, High temp, Suitable for washdown, Standoff housing, Suitable for high temperatureNo
Housing material, Housing optionCast iron
I D1 3/16 inch
Max RPM5500 rpm
Insert optionBearing steel
Measure systemImperial
Seal optionDualGuard seals with flingers
DutyStandard Duty
Bolt centerline range4 7/16 inch-5 3/16 inch
Insert typeBall Bearing
SealSingle lip
Bore1 3/16 in
Rolling elementStandard duty ball
Housing constructionSolid
Shaft diameter1.1875 in
Shaft attachmentClamp collar
Expansion capabilityNon-expansion (fixed)
Bolt to bolt min4.2500 in, 107.95 mm
Bolt to bolt max5.0000 in, 127.0 mm
Bearing typeBall, ball
Bolt Diameter0.5000 in
Take-up frame sizeLD-20,TS-250
Housing typeTwo-bolt pillow block
Lubrication typeGrease
Ball bearing series206 series
Sensor readyAdapter required
Base to center height1.6300 in, 41.402 mm

Distributor offers

SellerSKUMOQIn stockMultiplePrices
MRO Supply134280111 @ $108.71
Lily BearingP2B-DLU-1031-211 @ $97.50
apexindustrialautomation.comP2B-DLU-103111 @ $110.18
