P2B-DLEZ-35M-SHCR | Dodge

Dodge . P2B-DLEZ-35M-SHCR

Gallery

Attributes

Brand name, Manufacturer name, ManufacturerDodge
CategoryL1Bearings
CategoryL2Mounted Bearings
CategoryL3Mounted Ball Bearings
CategoryL4Pillow Block Bearings
DimensionUnitmm
Extra Product NameP2B-DLEZ-35M-SHCR | Dodge
diameter, width35.0
height1.88
height_AttribBase to center height
length1.75
length_AttribBore length
moq, multiple, tierMinQty11
MPNP2B-DLEZ-35M-SHCR
qtyInStock0
SKU127231

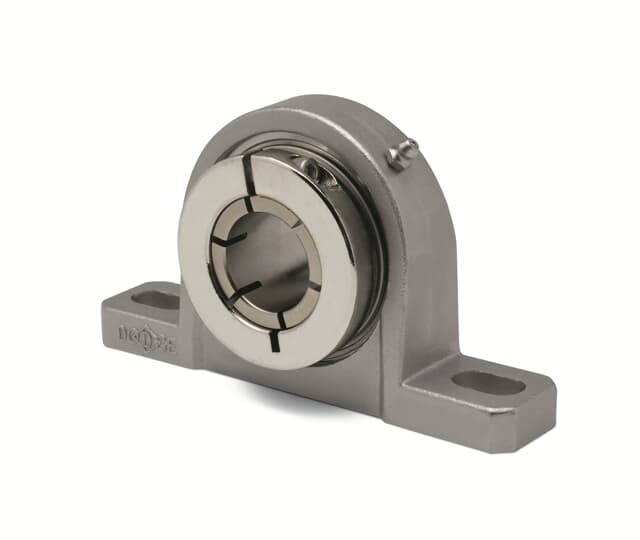

snippet35mm bore Pillow Block 2-Bolt Ball Bearing with Concentric Collar locking used in Washdown applications
tierPrice1264.03
width_AttribShaft diameter
DutyStandard Duty
Relubrication, Greasable, Suitable for washdownYes
Bore length1.7500 in, 44.45 mm
Insert typeBall Bearing
Rolling elementStandard duty ball
LockingConcentric collar
Expansion, High temp, Standoff housing, Suitable for high temperatureNo
Housing material, Housing optionStainless steel
ApplicationWashdown
Insert optionCorrosion resistant
Seal optionQuadGuard seals with flingers
Bore35mm
TypePillow block 2-Bolt
Housing constructionSolid
Shaft diameter35.0000 mm
Shaft attachmentClamp collar
Expansion capabilityNon-expansion (fixed)
Bolt to bolt min4.6800 in, 118.872 mm
Bolt to bolt max5.4400 in, 138.176 mm
Bearing typeBall, ball
Bolt Diameter0.5000 in
Housing typeTwo-bolt pillow block
Lubrication typeGrease
Ball bearing series207 series
Sensor readyAdapter required
Base to center height1.8800 in, 47.752 mm
Insert materialPlated steel

Distributor offers

SellerSKUMOQIn stockMultiplePrices
MRO Supply127231111 @ $264.03
Lily BearingP2B-DLEZ-35M-SHCR1-211 @ $255.46
Applied Industrial10189255311
apexindustrialautomation.comP2B-DLEZ-35M-SHCR111 @ $267.59
