P2B-DLM-103 | Dodge

Dodge . P2B-DLM-103

Gallery

Attributes

Brand name, Manufacturer name, ManufacturerDodge
CategoryL1Bearings
CategoryL2Mounted Bearings
CategoryL3Mounted Ball Bearings
CategoryL4Pillow Block Bearings
DimensionUnitmm
Extra Product NameP2B-DLM-103 | Dodge
diameter, width30.162499999999998
height47.751999999999995
height_AttribShaft centerline height
length1.71
length_AttribBore length
moq, multiple, tierMinQty11
MPNP2B-DLM-103
qtyInStock0
SKU125667

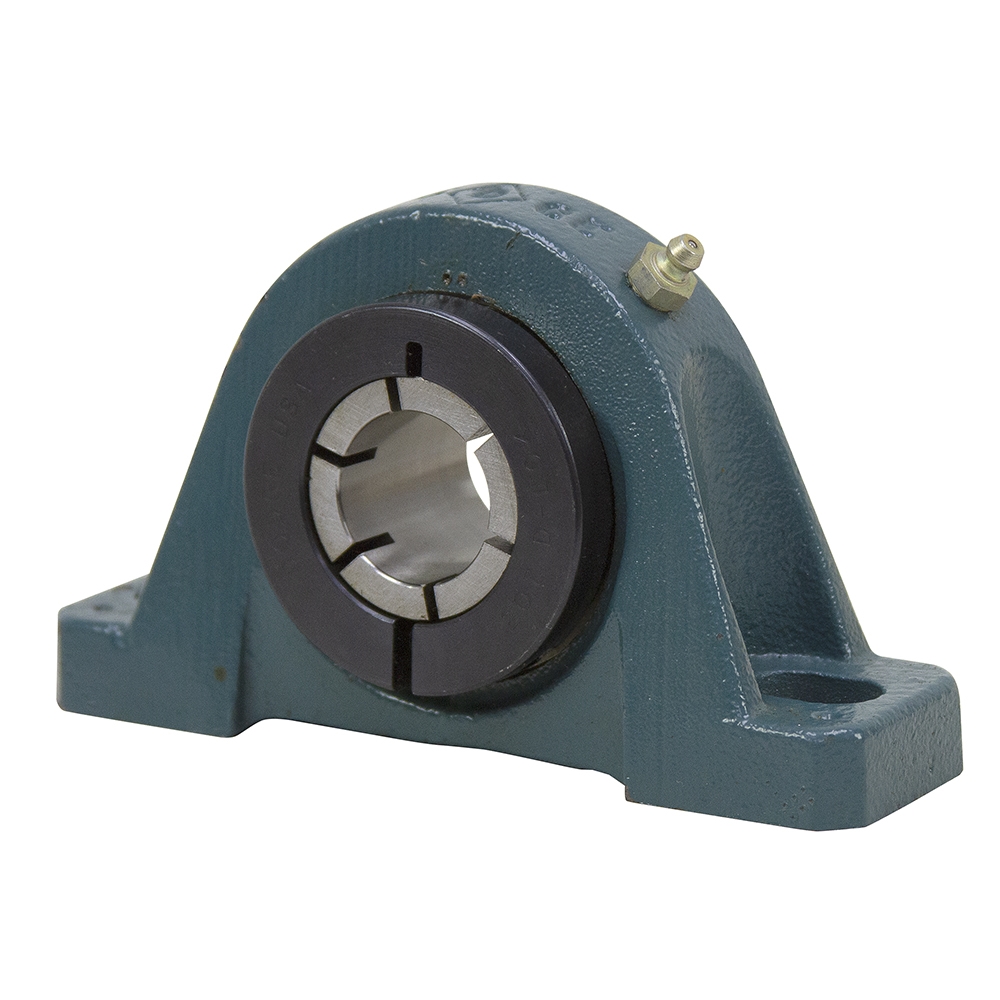

snippet1-3/16" bore Pillow Block 2-Bolt Ball Bearing with Concentric Collar locking used in General Purpose applications
tierPrice1128.08
width_AttribShaft diameter
LockingConcentric collar
ApplicationGeneral Purpose
TypePillow block 2-Bolt
Relubrication, GreasableYes
FinishPowder coated
Bore length1.7100 in, 43.434 mm
Shaft centerline height1.88 inch
Material, Insert materialSteel
Expansion, High temp, Suitable for washdown, Standoff housing, Suitable for high temperatureNo
Housing material, Housing optionCast iron
I D1 3/16 inch
Max RPM, Max Speed5500 rpm
Insert optionBearing steel
Seal optionDualGuard seals with flingers
DutyMedium duty
Bolt centerline range4.68 inch - 5.44 inch
Insert typeBall Bearing
SealSingle lip
Bore1 3/16 in
Rolling elementMedium duty ball
Housing constructionSolid
Ball bearing series207 series
Shaft diameter1.1875 in
Shaft attachmentClamp collar
Expansion capabilityNon-expansion (fixed)
Bolt to bolt min4.6800 in, 118.872 mm
Bolt to bolt max5.4400 in, 138.176 mm
Static load capacity3461 lbf, 15395.295 N
Bearing typeBall, ball
Bolt Diameter0.5000 in
Take-up frame sizeLD-20,TS-250
Housing typeTwo-bolt pillow block
Lubrication typeGrease
Sensor readyAdapter required
Base to center height1.8800 in, 47.752 mm

Distributor offers

SellerSKUMOQIn stockMultiplePrices
MRO Supply125667111 @ $128.08
Lily BearingP2B-DLM-1031-211 @ $114.89
surpluscenter.com1-114525111 @ $14.95
