P2B-DL-106 | Dodge

Dodge . P2B-DL-106

Gallery

Attributes

Brand name, Manufacturer name, ManufacturerDodge
CategoryL1Bearings
CategoryL2Mounted Bearings
CategoryL3Mounted Ball Bearings
CategoryL4Pillow Block Bearings
DimensionUnitmm
Extra Product NameP2B-DL-106 | Dodge
diameter, width34.925
height1.88
height_AttribBase to center height
length1.75
length_AttribBore length
moq, multiple, tierMinQty11
MPNP2B-DL-106
qtyInStock0
SKU130893

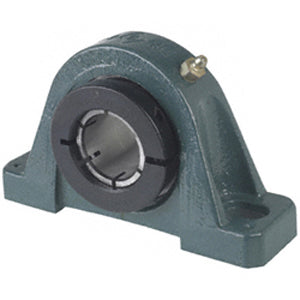

snippet1-3/8" bore Pillow Block 2-Bolt Ball Bearing with Concentric Collar locking used in General Purpose applications
tierPrice1128.08
width_AttribShaft diameter
LockingConcentric collar
ApplicationGeneral Purpose
TypePillow block 2-Bolt
Relubrication, GreasableYes
FinishPowder coated
Bore length1.7500 in, 44.45 mm
Shaft centerline height1 7/8 inch
Material, Insert materialSteel
Expansion, High temp, Suitable for washdown, Standoff housing, Suitable for high temperatureNo
Housing material, Housing optionCast iron
I D1 3/8 inch
Max RPM, Max Speed5500 rpm
Insert optionBearing steel
Measure systemImperial
Seal optionDualGuard seals with flingers
DutyStandard Duty
Bolt centerline range4 11/16 inch-5 5/16 inch
Insert typeBall Bearing
SealSingle lip
Bore1 3/8 in
Rolling elementStandard duty ball
Housing constructionSolid
Ball bearing series207 series
Shaft diameter1.3750 in
Shaft attachmentClamp collar
Expansion capabilityNon-expansion (fixed)
Bolt to bolt min4.6800 in, 118.872 mm
Bolt to bolt max5.4400 in, 138.176 mm
Static load capacity3461 lbf, 15395.295 N
Bearing typeBall, ball
Bolt Diameter0.5000 in
Take-up frame sizeLD-20,TS-250
Housing typeTwo-bolt pillow block
Lubrication typeGrease
Sensor readyAdapter required
Base to center height1.8800 in, 47.752 mm

Distributor offers

SellerSKUMOQIn stockMultiplePrices
MRO Supply130893111 @ $128.08
Lily BearingP2B-DL-1061-211 @ $126.38
apexindustrialautomation.comP2B-DL-106111 @ $129.81
