P2B-DL-012 | Dodge

Dodge . P2B-DL-012

Gallery

Attributes

Brand name, Manufacturer name, ManufacturerDodge
CategoryL1Bearings
CategoryL2Mounted Bearings
CategoryL3Mounted Ball Bearings
CategoryL4Pillow Block Bearings
DimensionUnitmm
Extra Product NameP2B-DL-012 | Dodge
diameter, width19.049999999999997
height33.3375
height_AttribShaft centerline height
length1.28
length_AttribBore length
moq, multiple, tierMinQty11
MPNP2B-DL-012
qtyInStock0
SKU125539

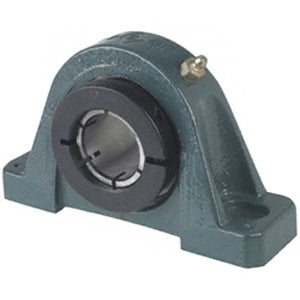

snippet3/4" bore Pillow Block 2-Bolt Ball Bearing with Concentric Collar locking used in General Purpose applications
tierPrice184.69
width_AttribShaft diameter
LockingConcentric collar
ApplicationGeneral Purpose
TypePillow block 2-Bolt
Relubrication, GreasableYes
FinishPowder coated
Bore length1.2800 in, 32.512 mm
Shaft centerline height1 5/16 inch
Material, Insert materialSteel
Expansion, High temp, Suitable for washdown, Standoff housing, Suitable for high temperatureNo
Housing material, Housing optionCast iron
I D3/4 inch
Max RPM, Max Speed7500 rpm
Insert optionBearing steel
Measure systemImperial
Seal optionDualGuard seals with flingers
DutyStandard Duty
Bolt centerline range3 3/8 inch-4 1/8 inch
Insert typeBall Bearing
SealSingle lip
Bore3/4 in
Rolling elementStandard duty ball
Housing constructionSolid
Ball bearing series204 series
Shaft diameter0.7500 in
Shaft attachmentClamp collar
Expansion capabilityNon-expansion (fixed)
Bolt to bolt min3.3800 in, 85.852 mm
Bolt to bolt max4.1900 in, 106.426 mm
Static load capacity1482 lbf, 6592.264 N
Bearing typeBall, ball
Bolt Diameter0.3750 in
Take-up frame sizeLD-10, TS-100
Housing typeTwo-bolt pillow block
Lubrication typeGrease
Sensor readyAdapter required
Base to center height1.3100 in, 33.274 mm

Distributor offers

SellerSKUMOQIn stockMultiplePrices
MRO Supply125539111 @ $84.69
Lily BearingP2B-DL-0121-211 @ $75.96
