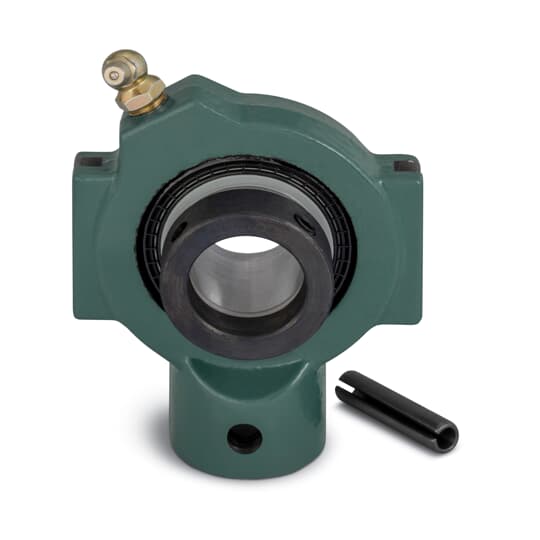

NSTU-SXR-204 | Dodge

Dodge . NSTU-SXR-204

Gallery

Attributes

Brand name, Manufacturer name, ManufacturerDodge
CategoryL1Bearings
CategoryL2Mounted Bearings
CategoryL3Mounted Ball Bearings
CategoryL4Take-Up Bearings
DimensionUnitmm
Extra Product NameNSTU-SXR-204 | Dodge
diameter, height, width57.15
height_Attrib, width_AttribShaft diameter
length2.74
length_AttribBore length
moq, multiple, tierMinQty11
MPNNSTU-SXR-204
qtyInStock0
SKU129372
snippet2-1/4" bore Narrow Slot Take Up Ball Bearing with Eccentric Locking locking used in General Purpose applications
tierPrice1231.91
DutyStandard Duty
Relubrication, GreasableYes
FinishPowder coated
Bore length2.7400 in, 69.596 mm
Insert typeBall Bearing
Rolling elementStandard duty ball
LockingEccentric locking
Expansion, High temp, Suitable for high temperature, Suitable for washdown, Standoff housingNo
Housing material, Housing optionCast iron
ApplicationGeneral Purpose
Insert optionBearing steel
Seal optionDualGuard seals with flingers
Bore, I D2 1/4 in
TypeNarrow slot take up
Housing constructionSolid
Static load capacity8100 lbf, 36030.595 N
Shaft diameter2.2500 in
Expansion capabilityNon-expansion (fixed)
Shaft attachmentEccentric collar
Bearing typeBall, ball
Ball bearing series212 series
Take-up frame sizeNS-415
Housing typeNarrow-slot take-up
Lubrication typeGrease
Max Speed2000 RPM
Sensor readyAdapter required
Insert materialSteel

Distributor offers

SellerSKUMOQIn stockMultiplePrices
MRO Supply129372111 @ $231.91
apexindustrialautomation.comNSTU-SXR-204111 @ $235.04
