NSTU-DL-106 | Dodge

Dodge . NSTU-DL-106

Gallery

Attributes

Brand name, Manufacturer name, ManufacturerDodge
CategoryL1Bearings
CategoryL2Mounted Bearings
CategoryL3Mounted Ball Bearings
CategoryL4Take-Up Bearings
DimensionUnitmm
Extra Product NameNSTU-DL-106 | Dodge
diameter, height, width34.925
height_Attrib, width_AttribShaft diameter
length1.75
length_AttribBore length
moq, multiple, tierMinQty11
MPNNSTU-DL-106
qtyInStock0
SKU783998

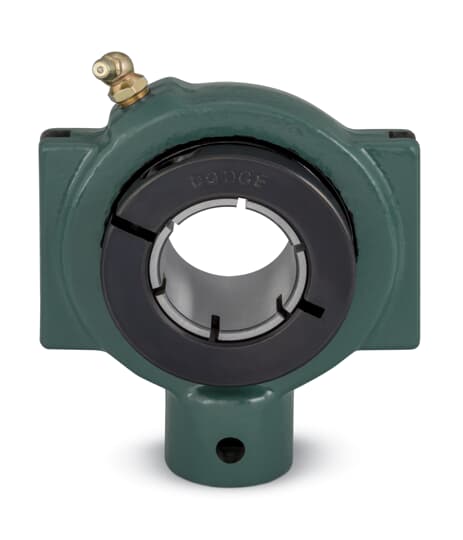

snippet1-3/8" bore Narrow Slot Take Up Ball Bearing with Concentric Collar locking used in General Purpose applications
tierPrice1161.79
DutyStandard Duty
Relubrication, GreasableYes
Bore length1.7500 in, 44.45 mm
Insert typeBall Bearing
TypeNarrow slot take up
LockingConcentric collar
Expansion, High temp, Suitable for high temperature, Standoff housing, Suitable for washdownNo
Housing material, Housing optionCast iron
ApplicationGeneral Purpose
Insert optionBearing steel
Seal optionDualGuard seals with flingers
Bore1 3/8 in
Rolling elementStandard duty ball
Housing constructionSolid
Static load capacity3461 lbf, 15395.295 N
Shaft diameter1.3750 in
Sensor readyAdapter required
Expansion capabilityNon-expansion (fixed)
Shaft attachmentClamp collar
Bearing typeBall, ball
Take-up frame sizeNS-308
Housing typeNarrow-slot take-up
Lubrication typeGrease
Max Speed5500 rpm
Ball bearing series207 series
Insert materialSteel

Distributor offers

SellerSKUMOQIn stockMultiplePrices
MRO Supply783998111 @ $161.79
motionindustries.com04222152111 @ $260.83
Applied Industrial10199963711
apexindustrialautomation.comNSTU-DL-106111 @ $163.97
