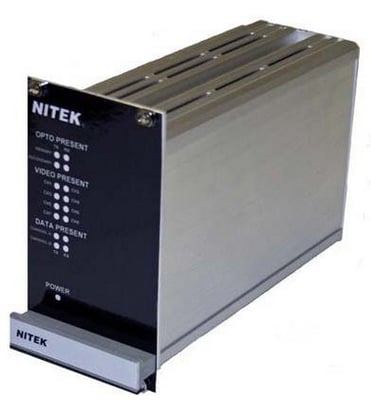

FTS541100R00 - Nitek

Nitek . FTS541100R00

Gallery

Attributes

Brand name, Manufacturer name, ManufacturerNitek
DimensionUnitm
Extra Product NameFTS541100R00 - Nitek
keywordsNitek, FTS541100R00, JMAC Supply
length1310.0
length_AttribWavelength
moq, multiple, tierMinQty11
MPN, SKUFTS541100R00
qtyInStock-2
qtySourceDefault field
tierPrice13248.00
CompressionNone, uncompressed
Input / output level1V P/P, nominal
Input / output impedance75 Ohm unbalanced
Frequency response10Hz to 5.57MHz min., 7.5MHz cut off
Differential gain2%
Differential phase2
Signal to noise ratio67dB, 10 bit conversion
Video connectionBNC
Optical connectionLC
Video standardNTSC/PAL
OpticalAccepts both multi and singlemode fiber; Multimode - 62.5/125, Singlemode - 9/125
Wavelength1310nm, 1550 option - 1550nm, Single fiber option - 1310/1550nm, CWDM - 13101610nm
Path loss17dB min., HP option - 22dB min., CWDM option - 22dB min.
Data interfaceRS232, RS422 (full duplex, two wire), RS485 (half duplex, two wire), Slide switch selectable
Data rate per channelUp to 512kb/s w/o Ethernet, Up to 256kb/s w/ Ethernet
Operating temperature5 to 160 Fahrenheit
Operating humidity0 to 95% noncondensing
Power requirements1224VAC or DC @ 300ma
IndicatorsPower - Green LED, Video sync - Green LED/channel
Height3U
Width2 card slots
Depth7.775

Distributor offers

SellerSKUMOQIn stockMultiplePrices
jmac.comFTS541100R001-211 @ $3248.00
alldataresource.comNIT-FTS541100R001-211 @ $3287.78
