<p>The Metcal SSC-773A Tip Cartridges have been upgraded with a new, high power coil assembly that delivers additional power to demanding solder joints, without the need to increase temperature. For use with the MFR-1160 and MFR-1161 Soldering Systems with the MFR-H6-SSC hand-piece, but also with the previous Metcal SP200 Soldering System.</p><b>The Metcal SSC-773A Specifications:</b><br><ul><li> Brand: Metcal?<li> Series: SSC Series<li> Product Type: Soldering Tip<li> Tip Shape: Knife<li> Tip Size: 0.02in<li> Tip Length: 0.64in<li> Tip Angle: 45?<li> For Use With: MFR-1160 Systems, MFR-H6-SSC Hand-pieces</ul>

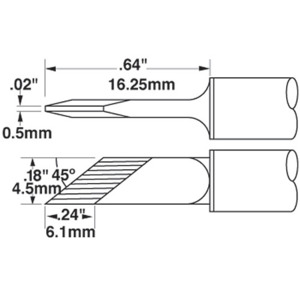

SSC soldering tip cartridges are designed to suit a wide range of soldering applications. For use with the SP200 soldering system only. SSC-773A is a Drag Knife cartridge with a .02" (0.5mm) opening. Tinned area: .24" (6.1mm). 700 Temp Series.

Metcal SSC-773A Cartridge, Knife, 5.97mm (0.235In)SSC-773AKnife 45degrees- Increased tinned area 5.1mm x 16.25mm (.24 x .64)Features and Benefits:The SSC Tip Cartridges have been upgraded with a new, high power coil assembly that delivers additional power to demanding solder joints, without the need to increase temperature. For use with the MFR-1160 and MFR-1161 Soldering Systems with the MFR-H6-SSC hand-piece, but also with the previous Metcal SP200 Soldering System. 700 Series for most standard applications.SmartHeatSmartHeat Technology is unique in that it senses the specific thermal demand directly at the solder pad and delivers the precise quantity and flow of thermal energy during both flux activation and intermetallic bonding phases without any adjustment and calibration. SmartHeat is radically different and provides users the only fully safe and thermally effective lead free soldering solution.Conventional technology senses and responds to the tip temperature and not the thermal energy demand of the solder joint and users are required to calibrate their systems regularly. In today's lead free environment, the conventional technology is thermally inefficient to produce good quality solder joints consistently and leaves process control in the hands of the individual operators.Conventional Soldering IronsMetcal SMARTHEAT TechnologyGood quality joints are a result of precise quantity and flow of thermal energy and not tip temperature. Fixed temperature cartridges and tips offer users a fully safe and thermally effective solution to their lead free soldering needs as well as complete process control. Furthermore, fixed temperature cartridges and tips can offer better tip life because they can operate at a lower temperature than conventional technology.The table below provides an overview of applications and maximum tip temperatures:

The Metcal Smartheat soldering cartridge is another quality product from Metcal. Offers a knife tip. The important aspects of buying these products, for proper sizing, are the width, length and thickness of the tip. This product comes with a tip width of 0.02 in, length of 0.64 in and thickness of. This soldering cartridge is designed to work with MFR-1160 - Soldering System, MFR-H6-SSC - Handpiece.
