Metcal SMTC-116 Cartridge Tip PLCC-32 700-F Series | JensenTools

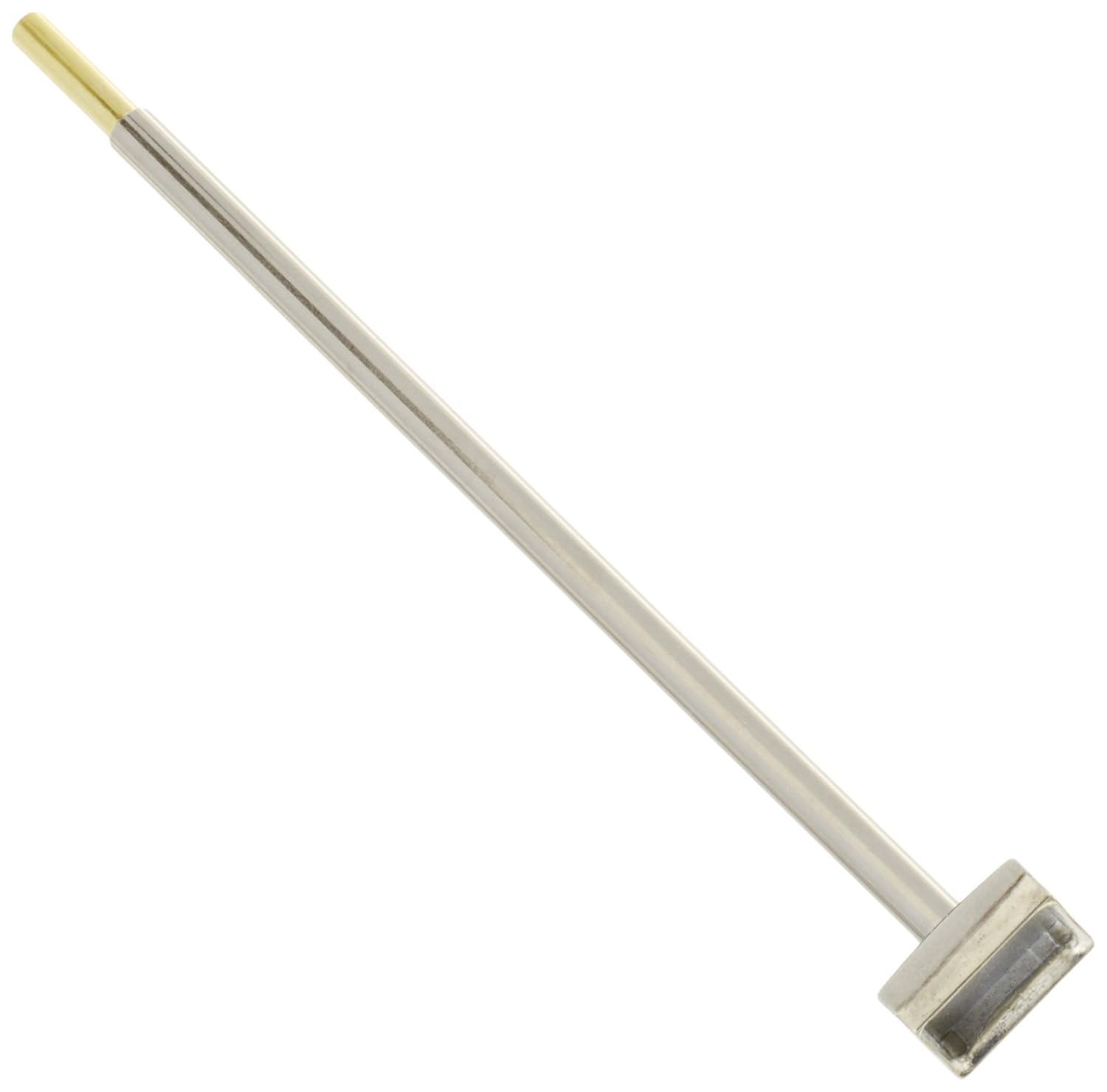

Metcal SMT Rework Cartridge for MX-H1-AV, 700°F, Quad Tip, PLCC-32, 0.45" W x 0.55" H (11.43mm x 13.97mm)

Metcal SMTC-116 Cartridge, Quad, PLCC-32SMTC-116For PLCC 32Features and Benefits:Rework Quad Cartridges for use with Metcal MX Series Soldering & Rework with MX-H1-AV and MX-RM3E Hand-pieces for conduction rework of surface mount components. The quad cartridges are used for the removal of four-sided devices such as QFP and PLCC. 700 Series for most standard applications.SmartHeatSmartHeat Technology is unique in that it senses the specific thermal demand directly at the solder pad and delivers the precise quantity and flow of thermal energy during both flux activation and intermetallic bonding phases without any adjustment and calibration. SmartHeat is radically different and provides users the only fully safe and thermally effective lead free soldering solution.Conventional technology senses and responds to the tip temperature and not the thermal energy demand of the solder joint and users are required to calibrate their systems regularly. In today's lead free environment, the conventional technology is thermally inefficient to produce good quality solder joints consistently and leaves process control in the hands of the individual operators.Conventional Soldering IronsMetcal SMARTHEAT TechnologyGood quality joints are a result of precise quantity and flow of thermal energy and not tip temperature. Fixed temperature cartridges and tips offer users a fully safe and thermally effective solution to their lead free soldering needs as well as complete process control. Furthermore, fixed temperature cartridges and tips can offer better tip life because they can operate at a lower temperature than conventional technology.The table below provides an overview of applications and maximum tip temperatures:

Metcal SMTC-116 Cartridge, Quad, PLCC-32

The Metcal SMTC Series tips are for use with the <a href="/mx-500-rework-handpieces-parts-soldering-handpiece-and-cord.html">MX-RM3E</a> Soldering Iron Handpiece. Metcal SMTC-116 Features: <ul> <li>Designed for reworking SMT Components</li> <li>700&deg; Temperature Range </li> <li>Assembly, removal, and cleaning</li> <li>RoHS Compliant</li> </ul

Designed for reworking SMT components, SMTC tip cartridges do it all - assembly, removal and cleaning. The SMTC range includes slot, tunnel and quad tip cartridges. SMTC soldering tip cartridges are for use with the MX-RM3E soldering/rework hand-pieces for STSS/MX systems only. They cannot be used with SP systems, Talon hand-pieces or desolder hand-pieces.

Metcal SMTC-116 Cartridge Tip PLCC-32 700-F Series SMTC-116
