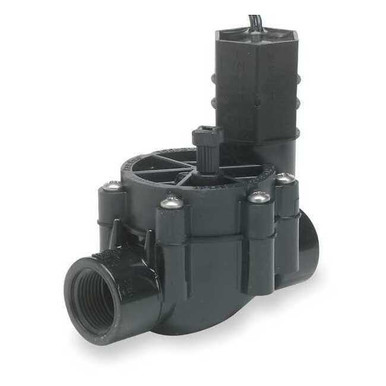

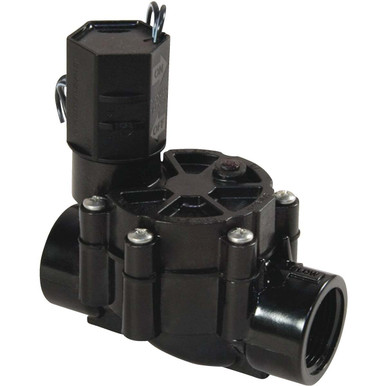

This residential and light commercial grade in-line valve replaces Rain Bird and other irrigation valves installed below ground with 1 inch female threaded inlet and outlet. It can be used with any 24 volt AC irrigation timer. Its unique reverse-flow design helps prevent flooding in the event of internal diaphragm failure, keeping the valve closed and saving water. This valve can be applied with all types of watering devices including Rain Bird spray heads (1800, 600), and rotors (22SA, 32SA, 42SA+, 52SA, LG3 and AG5). Use in-line valves in locations where the use of a pressure vacuum breaker (PVB) or a double-check valve is required by code to protect against backflow. Check your local codes to determine what type of valve is required. After installation and before startup, always the flush system of dirt and debris manually using the valve's external bleed screw.

Buna-N diaphragm offers superior performance in harsh water environments, Reverse flow design reduces stress on diaphragm for dependable operation, In-line design minimizes pressure loss, Operates automatically or manually with manual bleed screw, Designed for below-ground installation, out of sight and away, 1-inch female pipe thread inlet and outlet.Material: PlasticColor: Black

Sold as 3 UNITS at $17.33 per unit. (1 unit = each.) In-line diaphragm. Electric. Fits 1" FPT . Manufacturer number: CP-100. SKU #: 70691. Country of origin: Mexico. Distributed by Rain Bird Corporation-Consumer.

1 in female pipe thread inlet and outlet inline irrigation valve Buna-N diaphragm offers great performance in harsh water environments Reliable, non-clogging design Reverse flow design reduces stress on diaphragm for dependable operation In-line design minimizes pressure loss of dirt and debris during installation and system start-up Operates automatically or manually with manual bleed screw Works with any standard sprinkler timer Energy efficient, low power encapsulated solenoid with captured plunger Rain bird manufactures only the highest quality in-line valves. use in-line valves in locations where the use of a pressure vacuum breaker (pvb) or a double-check valve is required by city codes to protect against back flow. check your local city codes to determine what type of valves are required. in-line valves are installed below ground in a valve box down stream from the main line from a pvb or double check valve. in-line valves will not prevent back flow on their own and they need the help of a back flow prevention device.
