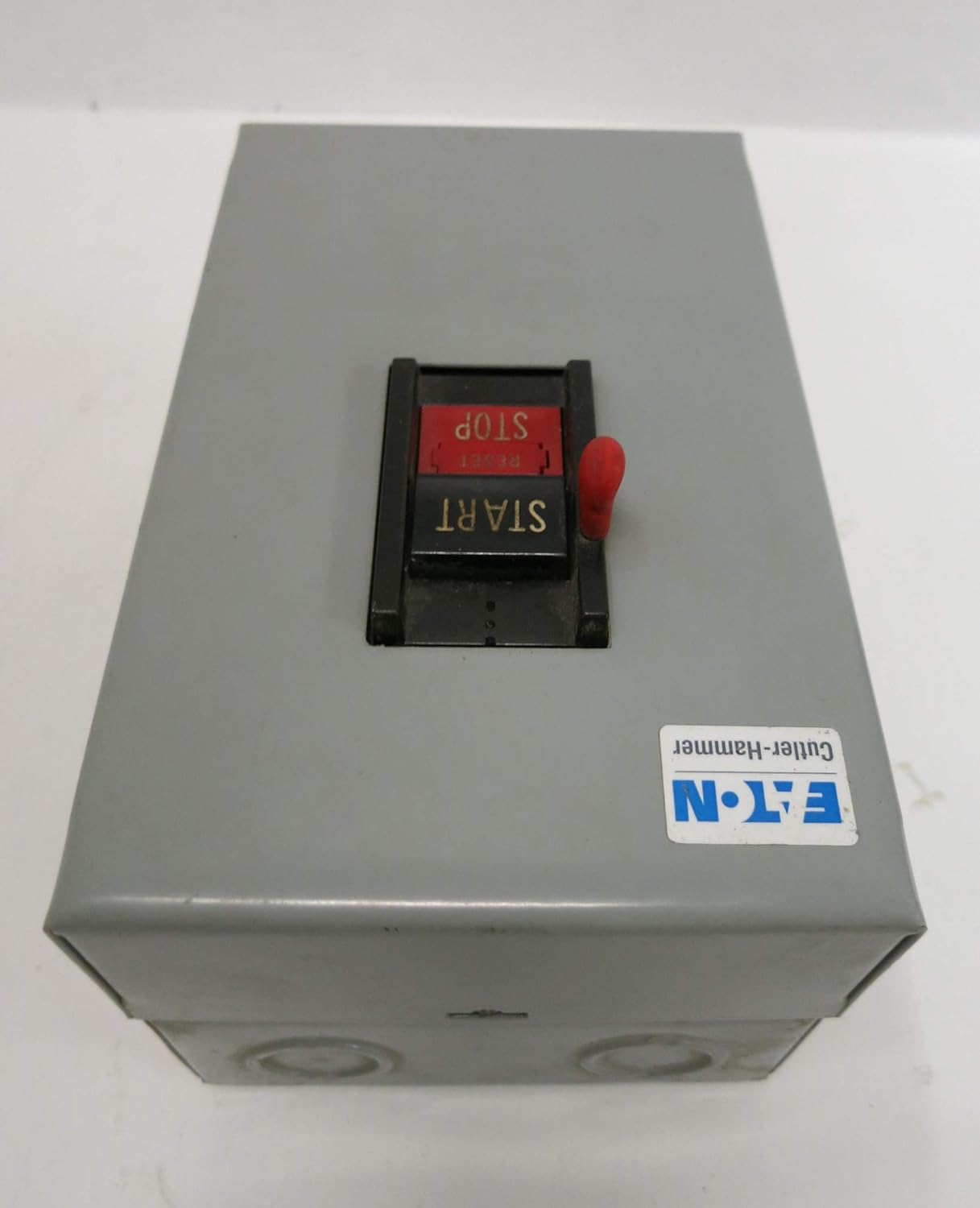

Manual Motor Starter, NEMA Size M-0, Operator Push Button, Enclosure NEMA Rating No Enclosure, Number of Required Thermals 3, Amps AC 26 A, Number of Poles 3, Description/Special Features Bimetallic Overload Relay, Max. Voltage 600V AC, HP @ 3 Phase - 240V 2 hp, HP @ 3 Phase - 480V 5 hp, Height 5.84 in, Width 3.19 in, Depth 4.59 in, HP @ 1 Phase - 120V 2 hp, HP @ 1 Phase - 230V 3 hp, HP @ 3 Phase - 200V 2 hp, HP @ 3 Phase - 460-575V 5 hp, HP @ 3 Phase - 575V 5 hp, Standards CSA, UL

Featuring straight-through wiring and field-mounted auxiliary contacts, this NEMA manual starter provides control and overload protection to single- and 3-phase motors. It comes standard with a lockout device to lock motor in the Off position.<br /><br /> Item: Manual Motor Starter<br /> NEMA Size: M-0<br /> Operator: Push Button<br /> Enclosure NEMA Rating: No Enclosure<br /> Number of Required Thermals: 3<br /> Amps AC: 26<br /> Number of Poles: 3<br /> Description/Special Features: Bimetallic Overload Relay<br /> Max. Voltage: 600VAC<br /> HP @ 3 Phase - 240V: 2<br /> HP @ 3 Phase - 480V: 5<br /> Height: 5.84"<br /> Width: 3.19"<br /> Depth: 4.59"<br /> HP @ 1 Phase - 120V: 2<br /> HP @ 1 Phase - 230V: 3<br /> HP @ 3 Phase - 200V: 2<br /> HP @ 3 Phase - 460-575V: 5<br /> HP @ 3 Phase - 575V: 5<br /> Standards: UL, CSA<br /> Pilot Light: No<br />
